HMC322LP4E

HMC322LP4E Overview

Product belongs to the HMC322G series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.032741 oz SMD/SMT Mounting-Style QFN-24 Impedance value is 50 Ohm, 75 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 24-QFN (4x4) Circuit type: SP8T Topology: Absorptive feedback P1dB is 23dBm (typ) IP1dB RF-Type: General Purpose Frequency upper limit of 8GHz Power-off control: 0.348 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SP8T The operating frequency is DC to 8 GHz. Octal switch functionality The 25 dB of this product is 35 dB.

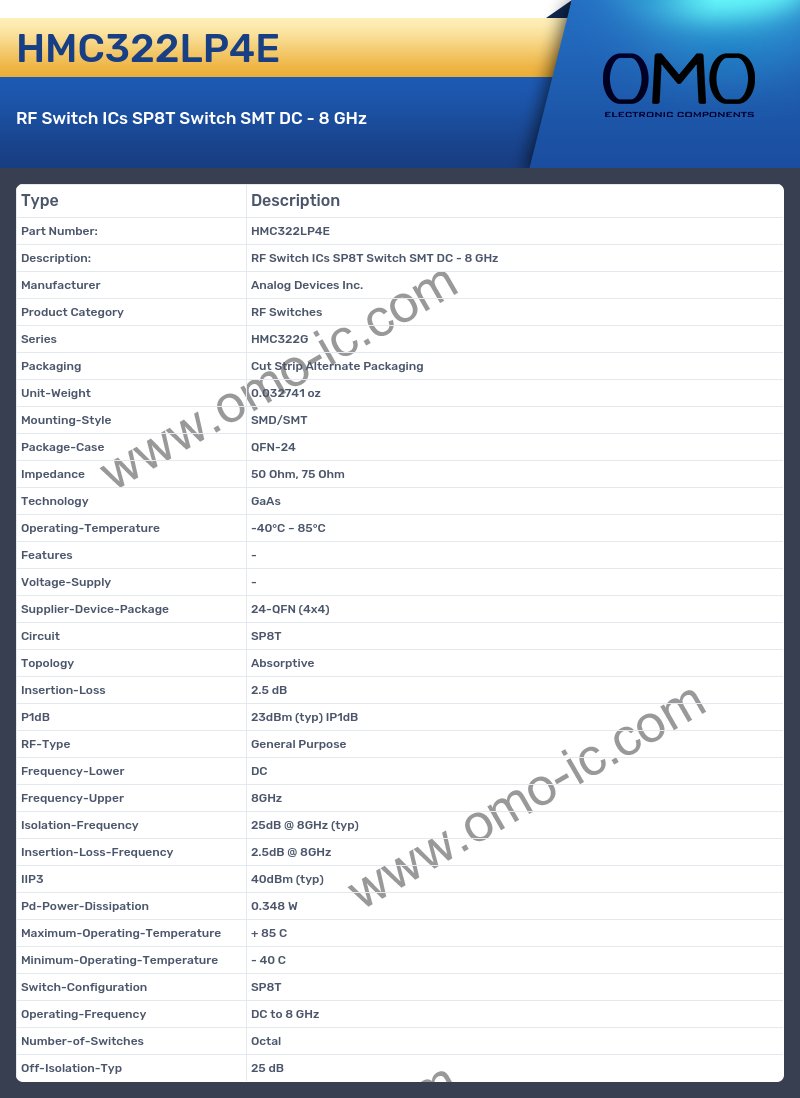

HMC322LP4E Image

HMC322LP4E Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC322G
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.032741 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-24
• Impedance 50 Ohm, 75 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 24-QFN (4x4)
• Circuit SP8T
• Topology Absorptive
• Insertion-Loss 2.5 dB
• P1dB 23dBm (typ) IP1dB
• RF-Type General Purpose
• Frequency-Lower DC
• Frequency-Upper 8GHz
• Isolation-Frequency 25dB @ 8GHz (typ)
• Insertion-Loss-Frequency 2.5dB @ 8GHz
• IIP3 40dBm (typ)
• Pd-Power-Dissipation 0.348 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SP8T
• Operating-Frequency DC to 8 GHz
• Number-of-Switches Octal
• Off-Isolation-Typ 25 dB
