HMC344LP3E

HMC344LP3E Overview

Product belongs to the HMC344G series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.002014 oz SMD/SMT Mounting-Style QFN-16 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 16-QFN (3x3) Circuit type: SP4T Topology: Absorptive feedback P1dB is 21dBm (typ) IP1dB RF-Type: WLAN Frequency upper limit of 8GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SP4T The operating frequency is DC to 8 GHz. Quad switch functionality Attribute: High-Control-Voltage, Value: - 5 V to - 4.2 V The 36 dB of this product is 35 dB.

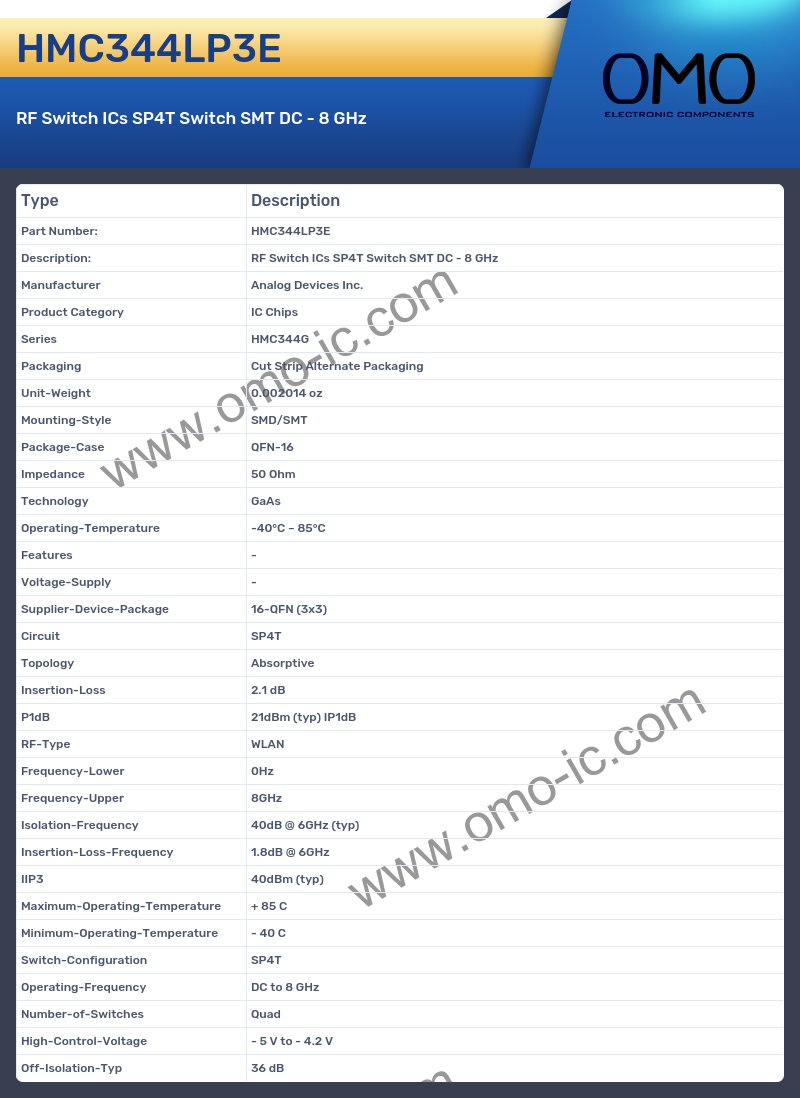

HMC344LP3E Image

HMC344LP3E Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series HMC344G
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.002014 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-16
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 16-QFN (3x3)
• Circuit SP4T
• Topology Absorptive
• Insertion-Loss 2.1 dB
• P1dB 21dBm (typ) IP1dB
• RF-Type WLAN
• Frequency-Lower 0Hz
• Frequency-Upper 8GHz
• Isolation-Frequency 40dB @ 6GHz (typ)
• Insertion-Loss-Frequency 1.8dB @ 6GHz
• IIP3 40dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SP4T
• Operating-Frequency DC to 8 GHz
• Number-of-Switches Quad
• High-Control-Voltage - 5 V to - 4.2 V
• Off-Isolation-Typ 36 dB
