HMC347-SX

HMC347-SX Overview

Product belongs to the HMC347G series. Tray is the packaging method for this product SMD/SMT Mounting-Style Die Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -55°C ~ 85°C Voltage Supply Range: - Supplier device package: Die Circuit type: SPDT Topology: Absorptive feedback P1dB is 23dBm (typ) IP1dB RF-Type: VSAT Frequency upper limit of 20GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 55 C Switch Configuration: SPDT The operating frequency is DC to 20 GHz. Dual switch functionality The 45 dB of this product is 35 dB.

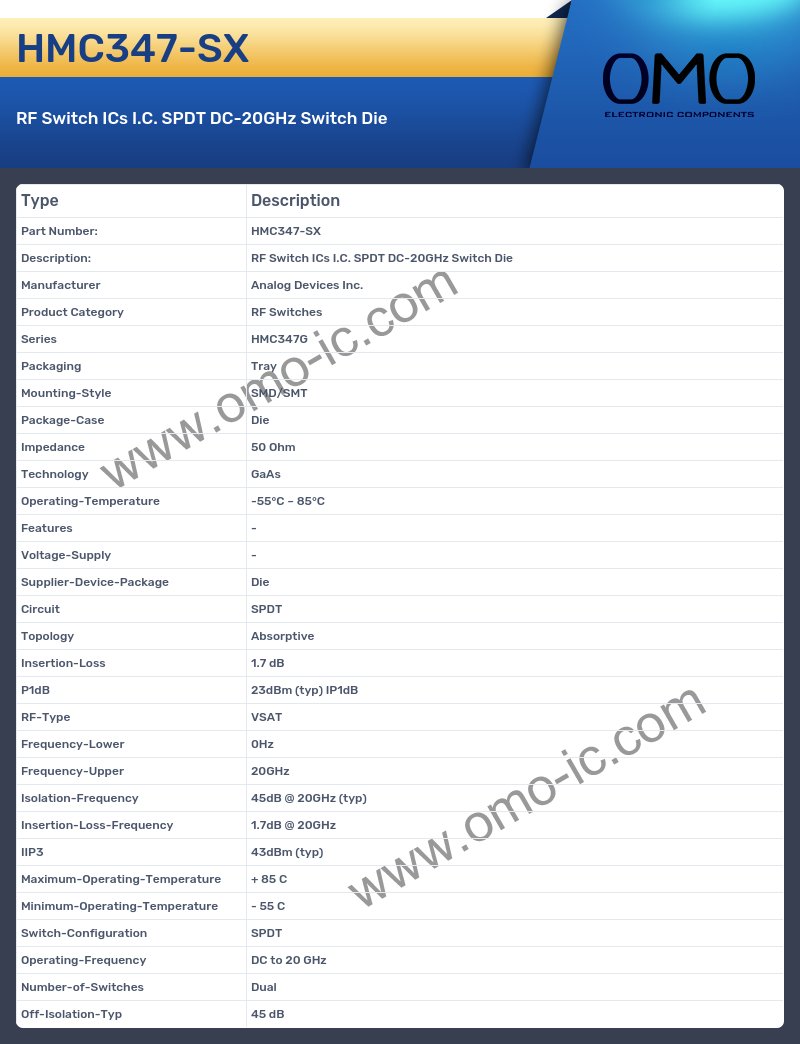

HMC347-SX Image

HMC347-SX Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC347G
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case Die
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -55°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package Die
• Circuit SPDT
• Topology Absorptive
• Insertion-Loss 1.7 dB
• P1dB 23dBm (typ) IP1dB
• RF-Type VSAT
• Frequency-Lower 0Hz
• Frequency-Upper 20GHz
• Isolation-Frequency 45dB @ 20GHz (typ)
• Insertion-Loss-Frequency 1.7dB @ 20GHz
• IIP3 43dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 55 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 20 GHz
• Number-of-Switches Dual
• Off-Isolation-Typ 45 dB
