HMC427LP3E

HMC427LP3E Overview

Product belongs to the HMC427 series. Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LP3-16 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 5V Supplier device package: 16-SMT (3x3) Circuit type: - Topology: Absorptive feedback P1dB is 26dBm (typ) IP1dB RF-Type: VSAT Frequency upper limit of 8GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 5 uA is 92 nA. The operating frequency is DC to 8 GHz. Maximum supply voltage of 5 V Quad switch functionality Attribute: High-Control-Voltage, Value: 0.2 V The 32 dB of this product is 35 dB.

HMC427LP3E Image

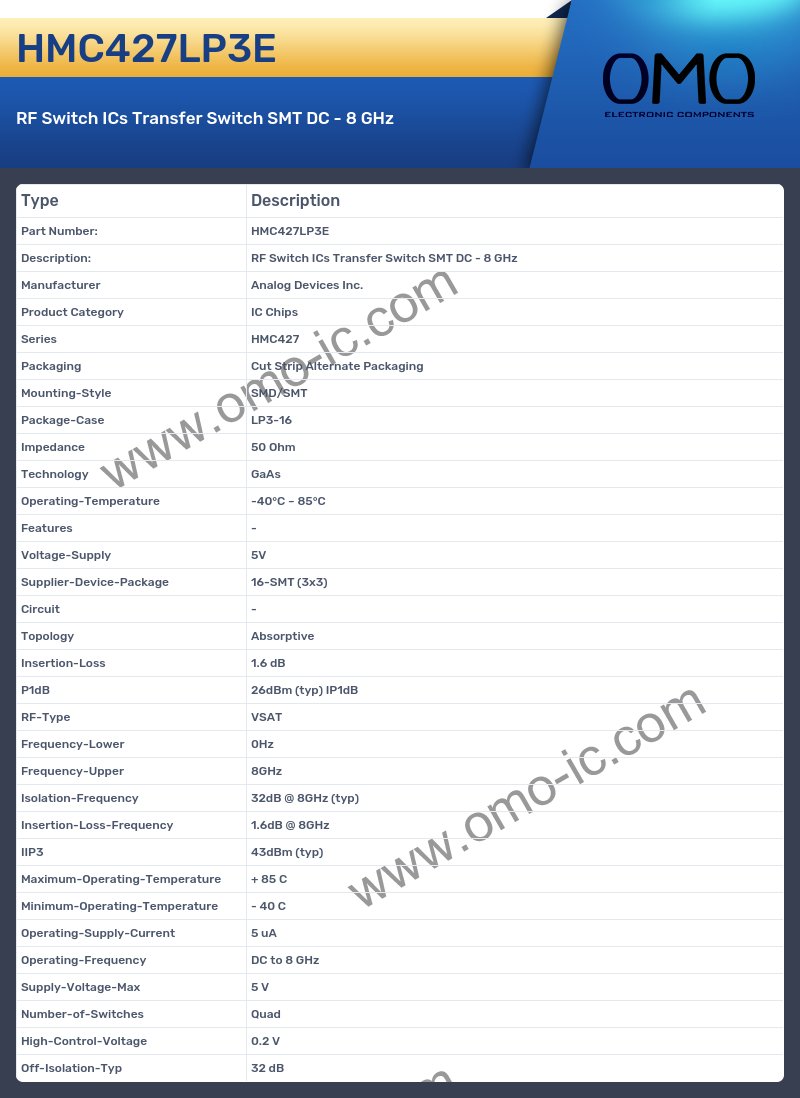

HMC427LP3E Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series HMC427
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LP3-16
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply 5V
• Supplier-Device-Package 16-SMT (3x3)
• Circuit -
• Topology Absorptive
• Insertion-Loss 1.6 dB
• P1dB 26dBm (typ) IP1dB
• RF-Type VSAT
• Frequency-Lower 0Hz
• Frequency-Upper 8GHz
• Isolation-Frequency 32dB @ 8GHz (typ)
• Insertion-Loss-Frequency 1.6dB @ 8GHz
• IIP3 43dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5 uA
• Operating-Frequency DC to 8 GHz
• Supply-Voltage-Max 5 V
• Number-of-Switches Quad
• High-Control-Voltage 0.2 V
• Off-Isolation-Typ 32 dB
