| Mfr. #: | HMC509LP5 |
|---|---|
| 제조사: | Analog Devices Inc. |
| 설명: | VCO Oscillators VCO SMT with Fo/2 7.8 - 8.8 GHz |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | HMC509LP5 데이터 시트 |
Product belongs to the HMC509 series. This product is categorized as VCO Tube Alternate Packaging is the packaging method for this product Solder Pad Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 0.039" (1.00mm). 5.1 mm length of the product The 5.1 mm is at most 7.6 mm. QFN-32 This product's 7.8 GHz to 8.8 GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz Voltage Supply Range: 5V Frequency center: 4.15GHz, 8.3GHz Tuning-Voltage-VDC ranges from 2 ~ 13 V for precise control. This product has a 10. The maximum current consumption of this product is 270mA. 10. This product has a power output of 7.5±2.5, 12.5±2.5 dBm. This product's -115. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

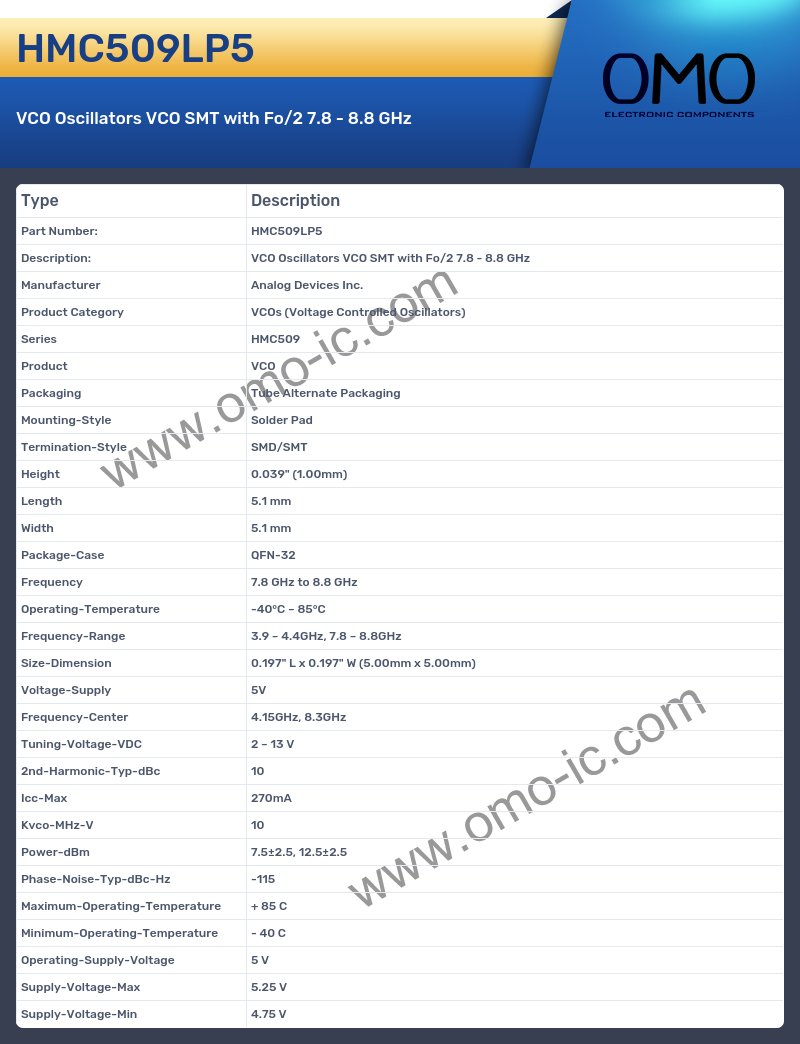

HMC509LP5 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed HMC509
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed VCO
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube Alternate Packaging.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Solder Pad
A: What is the Termination-Style of the product?
Q: The Termination-Style of the product is SMD/SMT.
A: What is the Height of the product?
Q: The Height of the product is 0.039" (1.00mm).
A: Is the cutoff frequency of the product Length?
Q: Yes, the product's Length is indeed 5.1 mm
A: Is the cutoff frequency of the product Width?
Q: Yes, the product's Width is indeed 5.1 mm
A: At what frequency does the Package-Case?
Q: The product Package-Case is QFN-32.
A: Is the cutoff frequency of the product Frequency?
Q: Yes, the product's Frequency is indeed 7.8 GHz to 8.8 GHz
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 85°C.
A: What is the Frequency-Range of the product?
Q: The Frequency-Range of the product is 3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz.
A: What is the Voltage-Supply of the product?
Q: The Voltage-Supply of the product is 5V.
A: At what frequency does the Frequency-Center?
Q: The product Frequency-Center is 4.15GHz, 8.3GHz.
A: Is the cutoff frequency of the product Tuning-Voltage-VDC?
Q: Yes, the product's Tuning-Voltage-VDC is indeed 2 ~ 13 V
A: At what frequency does the 2nd-Harmonic-Typ-dBc?
Q: The product 2nd-Harmonic-Typ-dBc is 10.
A: Is the cutoff frequency of the product Icc-Max?
Q: Yes, the product's Icc-Max is indeed 270mA
A: Is the cutoff frequency of the product Kvco-MHz-V?
Q: Yes, the product's Kvco-MHz-V is indeed 10
A: Is the cutoff frequency of the product Power-dBm?
Q: Yes, the product's Power-dBm is indeed 7.5±2.5, 12.5±2.5
A: Is the cutoff frequency of the product Phase-Noise-Typ-dBc-Hz?
Q: Yes, the product's Phase-Noise-Typ-dBc-Hz is indeed -115
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 85 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 5 V.
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 5.25 V
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 4.75 V.
