HMC536LP2

HMC536LP2 Overview

Product belongs to the HMC536 series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.000744 oz SMD/SMT Mounting-Style DFN-6 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 5V Supplier device package: 6-DFN (2x2) Circuit type: SPDT Topology: - feedback P1dB is 33dBm RF-Type: Cellular Frequency upper limit of 6GHz Power-off control: 0.86 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is DC to 6 GHz. Dual switch functionality The 27 dB of this product is 35 dB.

HMC536LP2 Image

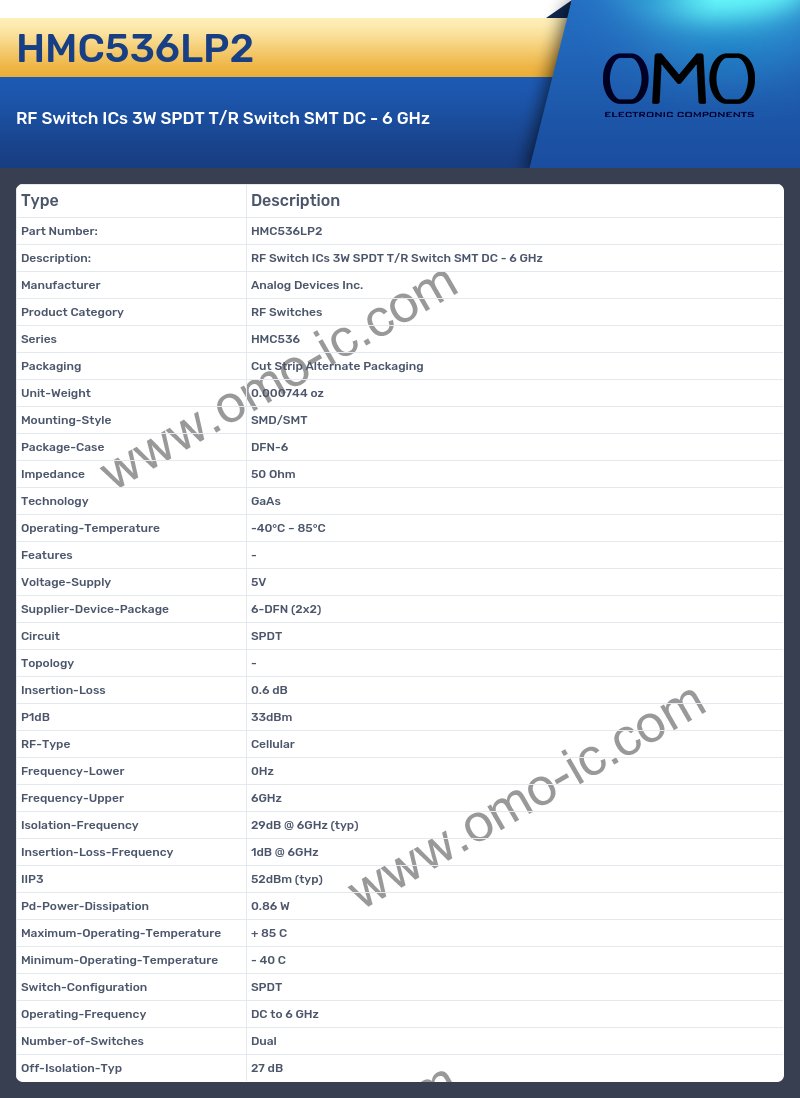

HMC536LP2 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC536
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.000744 oz
• Mounting-Style SMD/SMT
• Package-Case DFN-6
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply 5V
• Supplier-Device-Package 6-DFN (2x2)
• Circuit SPDT
• Topology -
• Insertion-Loss 0.6 dB
• P1dB 33dBm
• RF-Type Cellular
• Frequency-Lower 0Hz
• Frequency-Upper 6GHz
• Isolation-Frequency 29dB @ 6GHz (typ)
• Insertion-Loss-Frequency 1dB @ 6GHz
• IIP3 52dBm (typ)
• Pd-Power-Dissipation 0.86 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 6 GHz
• Number-of-Switches Dual
• Off-Isolation-Typ 27 dB
