HMC536MS8GETR

HMC536MS8GETR Overview

Product belongs to the HMC536 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style MS8G Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 8-MSG Circuit type: SPDT Topology: Reflective feedback P1dB is - RF-Type: General Purpose Frequency upper limit of 6GHz Power-off control: 0.867 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is DC to 6 GHz. Dual switch functionality Attribute: High-Control-Voltage, Value: 3 V to 5 V The 32 dB of this product is 35 dB.

HMC536MS8GETR Image

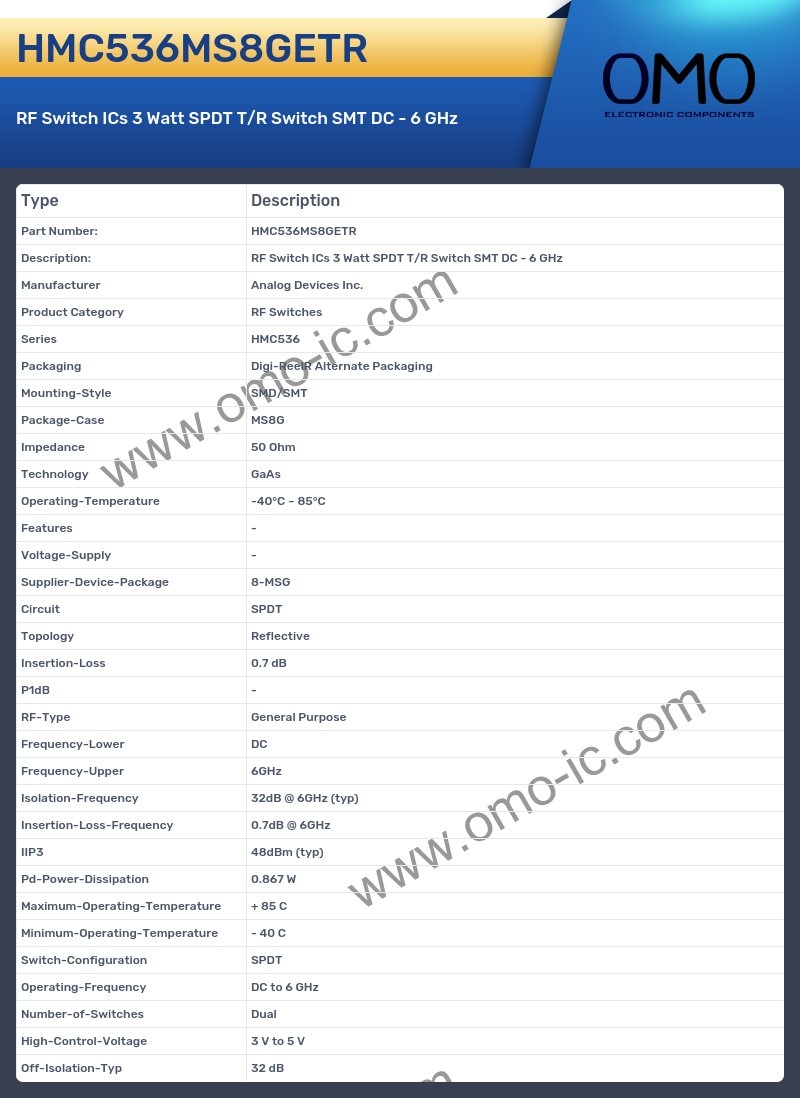

HMC536MS8GETR Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC536
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case MS8G
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 8-MSG
• Circuit SPDT
• Topology Reflective
• Insertion-Loss 0.7 dB
• P1dB -
• RF-Type General Purpose
• Frequency-Lower DC
• Frequency-Upper 6GHz
• Isolation-Frequency 32dB @ 6GHz (typ)
• Insertion-Loss-Frequency 0.7dB @ 6GHz
• IIP3 48dBm (typ)
• Pd-Power-Dissipation 0.867 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 6 GHz
• Number-of-Switches Dual
• High-Control-Voltage 3 V to 5 V
• Off-Isolation-Typ 32 dB
