HMC557ALC4

HMC557ALC4 Overview

Product belongs to the - series. Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 24-TFQFN Exposed Pad This product's 2.5GHz ~ 7GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Product function is -. Voltage Supply Range: - Supplier device package: 24-LCC (4x4) This product has a - of 200μA. The device offers a - of 26dB. RF-Type: WiMax Mixer count: 1 Power-off control: 972 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The EV1HMC557ALC4. NF-Noise-Figure is 8.5 dB Conversion loss of up to 10.5 dB maximum 18 dBm OIP3 third-order intercept IF-Frequency: DC to 3 GHz

HMC557ALC4 Image

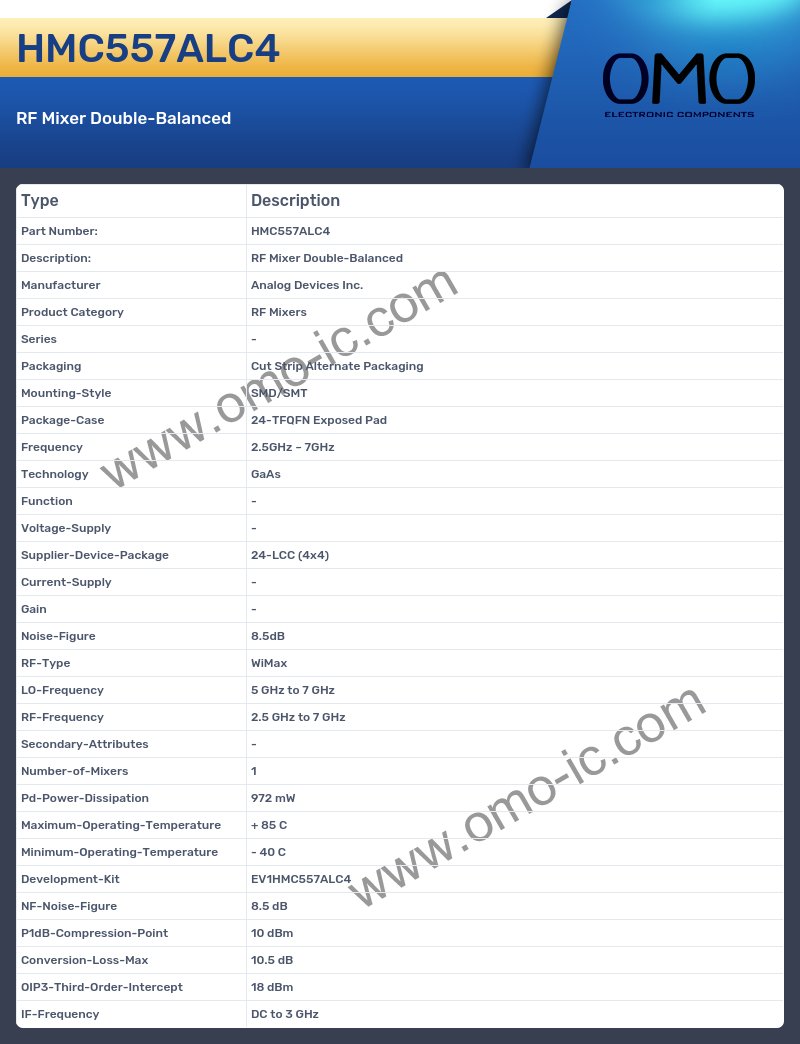

HMC557ALC4 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Mixers
• Series -
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 24-TFQFN Exposed Pad
• Frequency 2.5GHz ~ 7GHz
• Technology GaAs
• Function -
• Voltage-Supply -
• Supplier-Device-Package 24-LCC (4x4)
• Current-Supply -
• Gain -
• Noise-Figure 8.5dB
• RF-Type WiMax
• LO-Frequency 5 GHz to 7 GHz
• RF-Frequency 2.5 GHz to 7 GHz
• Secondary-Attributes -
• Number-of-Mixers 1
• Pd-Power-Dissipation 972 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Development-Kit EV1HMC557ALC4
• NF-Noise-Figure 8.5 dB
• P1dB-Compression-Point 10 dBm
• Conversion-Loss-Max 10.5 dB
• OIP3-Third-Order-Intercept 18 dBm
• IF-Frequency DC to 3 GHz
