HMC659LC5

HMC659LC5 Overview

Product belongs to the HMC659G series. Type: RF Amplifier Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SMT-32 This product's 0Hz ~ 15GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Frequency Bandwidth: DC to 15 GHz Number of channels: 1 Channel Voltage Supply Range: 8V Supplier device package: 32-CSMT (5x5) This product has a 300mA of 200μA. The device offers a 19dB of 26dB. The amplifier is of Power type. Test-Frequency is -. P1dB is 27.5dBm RF-Type: General Purpose Power-off control: 3.3 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 8 V supply voltage for reliable performance. 300 mA is 92 nA. The operating frequency is 15 GHz. NF-Noise-Figure is 3.5 dB 35 dBm OIP3 third-order intercept The 20 dB is 12 dB.

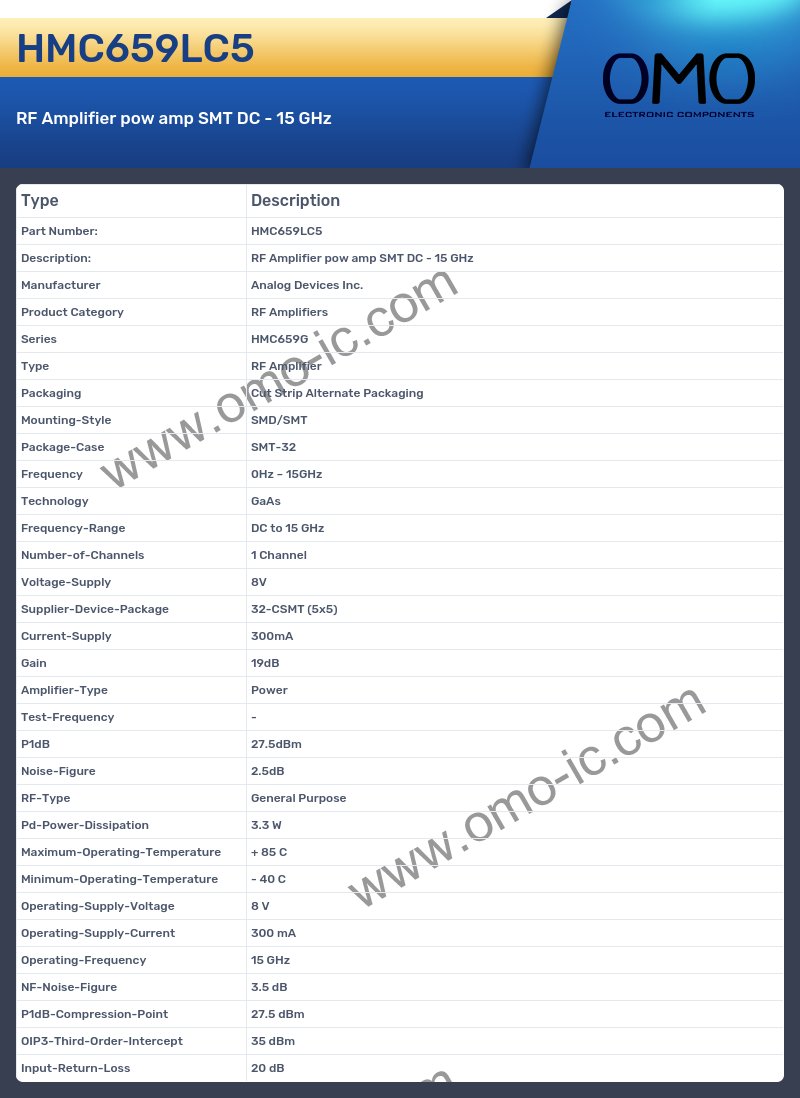

HMC659LC5 Image

HMC659LC5 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Amplifiers
• Series HMC659G
• Type RF Amplifier
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SMT-32
• Frequency 0Hz ~ 15GHz
• Technology GaAs
• Frequency-Range DC to 15 GHz
• Number-of-Channels 1 Channel
• Voltage-Supply 8V
• Supplier-Device-Package 32-CSMT (5x5)
• Current-Supply 300mA
• Gain 19dB
• Amplifier-Type Power
• Test-Frequency -
• P1dB 27.5dBm
• Noise-Figure 2.5dB
• RF-Type General Purpose
• Pd-Power-Dissipation 3.3 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 8 V
• Operating-Supply-Current 300 mA
• Operating-Frequency 15 GHz
• NF-Noise-Figure 3.5 dB
• P1dB-Compression-Point 27.5 dBm
• OIP3-Third-Order-Intercept 35 dBm
• Input-Return-Loss 20 dB
