HMC675LP3E

HMC675LP3E Overview

Product belongs to the HMC675 series. This product is categorized as Analog Comparators Type: General Purpose Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.010159 oz SMD/SMT Mounting-Style QSOP-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CML Number of channels: 1 Channel Supplier device package: 16-SMT (3x3) Voltage supply range: 3.3V 1 element 9mA maximum quiescent current. Maximum propagation delay: 0.13ns Hysteresis value of 1mV Power-off control: No Shutdown Power-off control: 100 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 9 mA is 92 nA. General Purpose with Latch comparator type Input bias current of 15 uA The 5 mV. The 4 uA. 100 ps is 23 microseconds. The 35 dB. 8 mA The CMRR-Common-Mode-Rejection-Ratio is 80 dB.

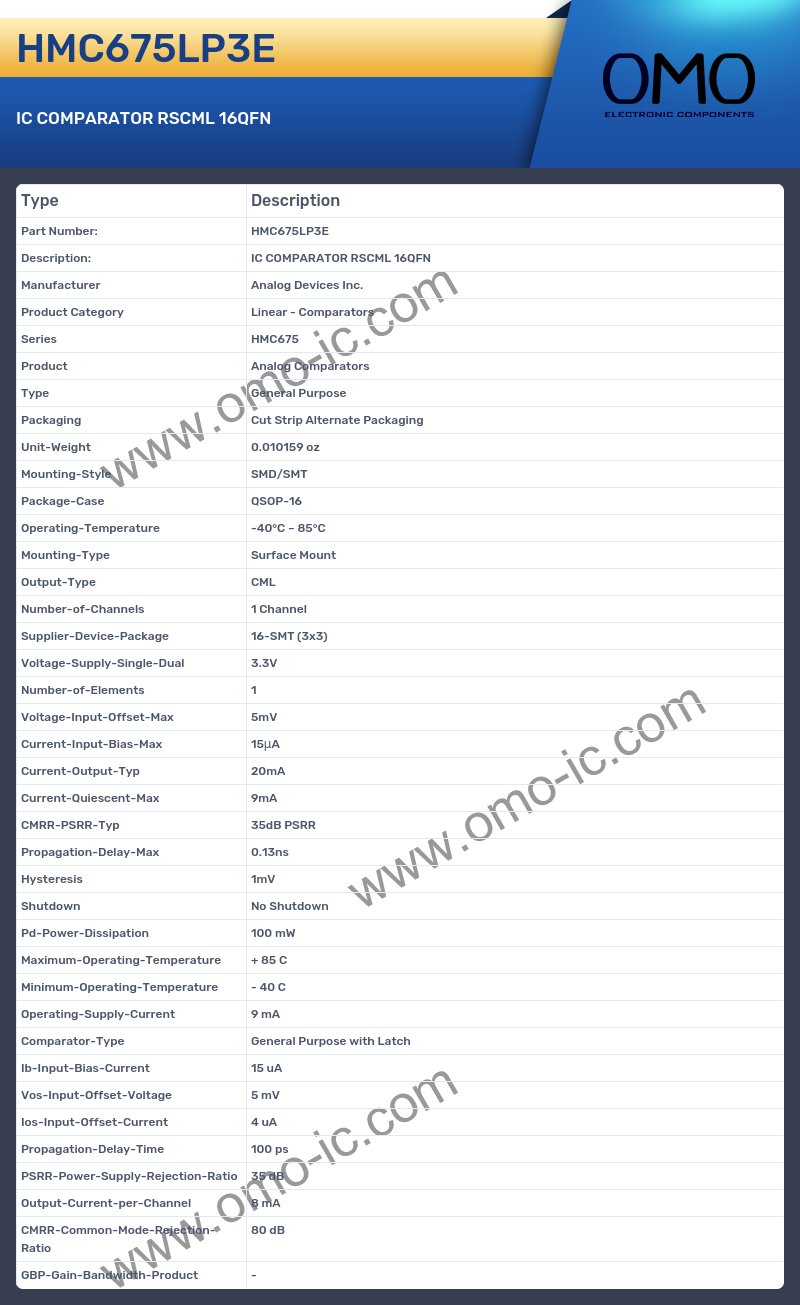

HMC675LP3E Image

HMC675LP3E Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Comparators
• Series HMC675
• Product Analog Comparators
• Type General Purpose
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.010159 oz
• Mounting-Style SMD/SMT
• Package-Case QSOP-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type CML
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-SMT (3x3)
• Voltage-Supply-Single-Dual 3.3V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 5mV
• Current-Input-Bias-Max 15μA
• Current-Output-Typ 20mA
• Current-Quiescent-Max 9mA
• CMRR-PSRR-Typ 35dB PSRR
• Propagation-Delay-Max 0.13ns
• Hysteresis 1mV
• Shutdown No Shutdown
• Pd-Power-Dissipation 100 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 9 mA
• Comparator-Type General Purpose with Latch
• Ib-Input-Bias-Current 15 uA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 4 uA
• Propagation-Delay-Time 100 ps
• PSRR-Power-Supply-Rejection-Ratio 35 dB
• Output-Current-per-Channel 8 mA
• CMRR-Common-Mode-Rejection-Ratio 80 dB
• GBP-Gain-Bandwidth-Product -
