HMC683LP6CE

HMC683LP6CE Overview

Product belongs to the HMC683 series. This product is categorized as Down Converters Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.004138 oz SMD/SMT Mounting-Style QFN-40 This product's 700MHz ~ 1GHz range is 0Hz to 2.2GHz. Product function is -. Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 40-SMT (6x6) This product has a 420mA of 200μA. The device offers a 7.5dB of 26dB. RF-Type: LTE, WiMax Mixer count: 2 Power-off control: 4.42 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 450 mA is 92 nA. NF-Noise-Figure is 12 dB IF-Frequency: 0.06 GHz to 0.4 GHz

HMC683LP6CE Image

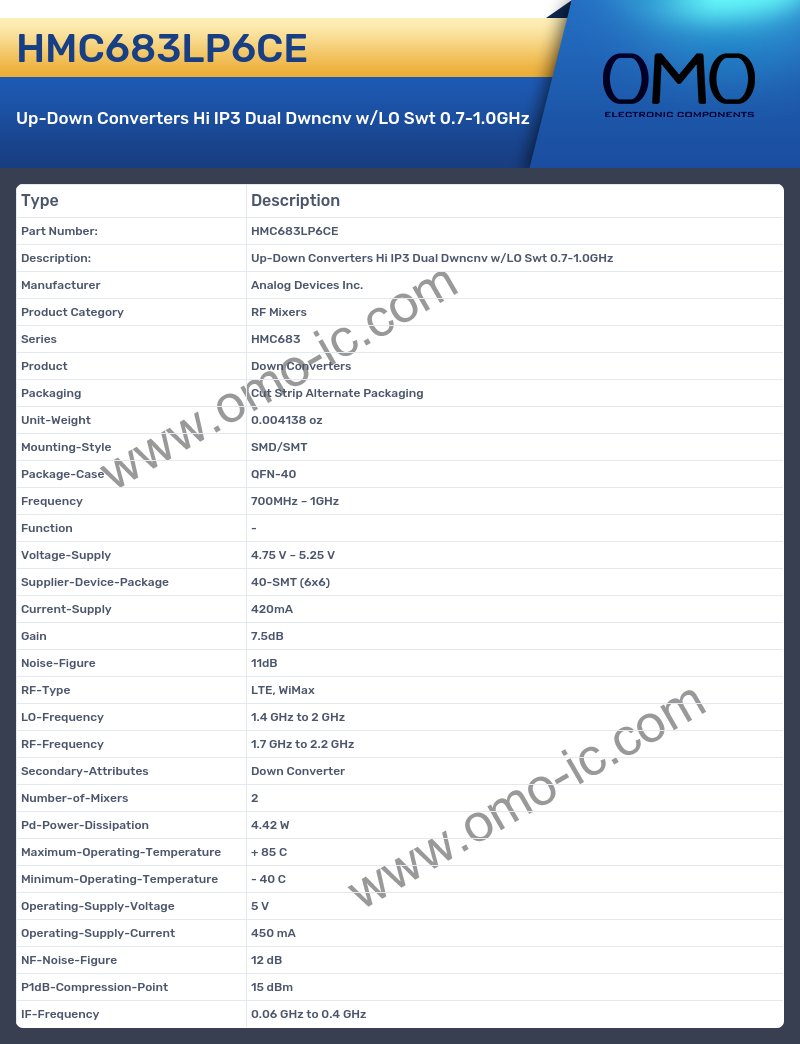

HMC683LP6CE Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Mixers
• Series HMC683
• Product Down Converters
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.004138 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-40
• Frequency 700MHz ~ 1GHz
• Function -
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 40-SMT (6x6)
• Current-Supply 420mA
• Gain 7.5dB
• Noise-Figure 11dB
• RF-Type LTE, WiMax
• LO-Frequency 1.4 GHz to 2 GHz
• RF-Frequency 1.7 GHz to 2.2 GHz
• Secondary-Attributes Down Converter
• Number-of-Mixers 2
• Pd-Power-Dissipation 4.42 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 450 mA
• NF-Noise-Figure 12 dB
• P1dB-Compression-Point 15 dBm
• IF-Frequency 0.06 GHz to 0.4 GHz
