HMC685LP4E

HMC685LP4E Overview

Product belongs to the HMC685 series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.032741 oz SMD/SMT Mounting-Style QFN-24 This product's 1.7GHz ~ 2.2GHz range is 0Hz to 2.2GHz. Silicon is the technology used. Product function is -. Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 24-SMT (4x4) This product has a 120mA of 200μA. The device offers a - of 26dB. RF-Type: LTE, WiMax Mixer count: 1 Power-off control: 0.83 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 120 mA is 92 nA. NF-Noise-Figure is 8 dB Conversion loss of up to 10 dB maximum

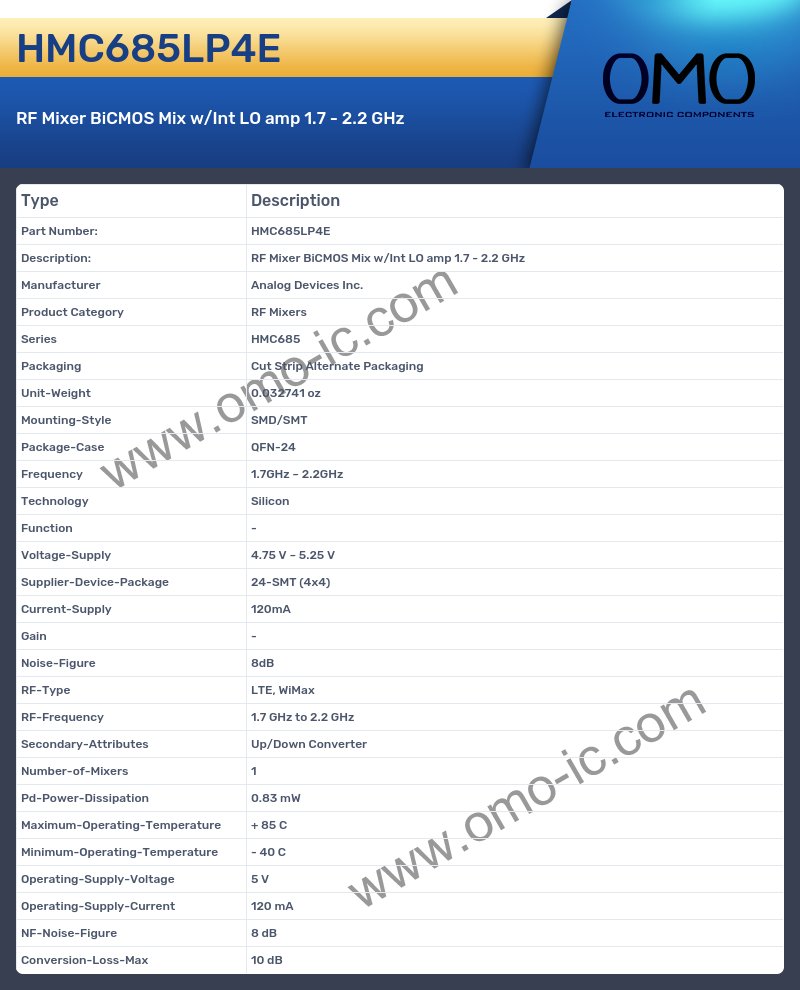

HMC685LP4E Image

HMC685LP4E Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Mixers
• Series HMC685
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.032741 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-24
• Frequency 1.7GHz ~ 2.2GHz
• Technology Silicon
• Function -
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 24-SMT (4x4)
• Current-Supply 120mA
• Gain -
• Noise-Figure 8dB
• RF-Type LTE, WiMax
• RF-Frequency 1.7 GHz to 2.2 GHz
• Secondary-Attributes Up/Down Converter
• Number-of-Mixers 1
• Pd-Power-Dissipation 0.83 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 120 mA
• NF-Noise-Figure 8 dB
• Conversion-Loss-Max 10 dB
