HMC856LC5

HMC856LC5 Overview

Product belongs to the HMC856 series. Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SMT-32 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Programmable. Voltage Supply Range: -2.9 V ~ -3.7 V Supplier device package: 32-CSMT (5x5) 1 is 8. 3ps is set to 3ps 100ps total available delay Number of independent delays: 1 CML logic type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 185 mA is 92 nA. Maximum supply voltage of - 2.9 V Minimum supply voltage is - 3.7 V 856LC logic type 255 ps is 23 microseconds. Differential input signal type

HMC856LC5 Image

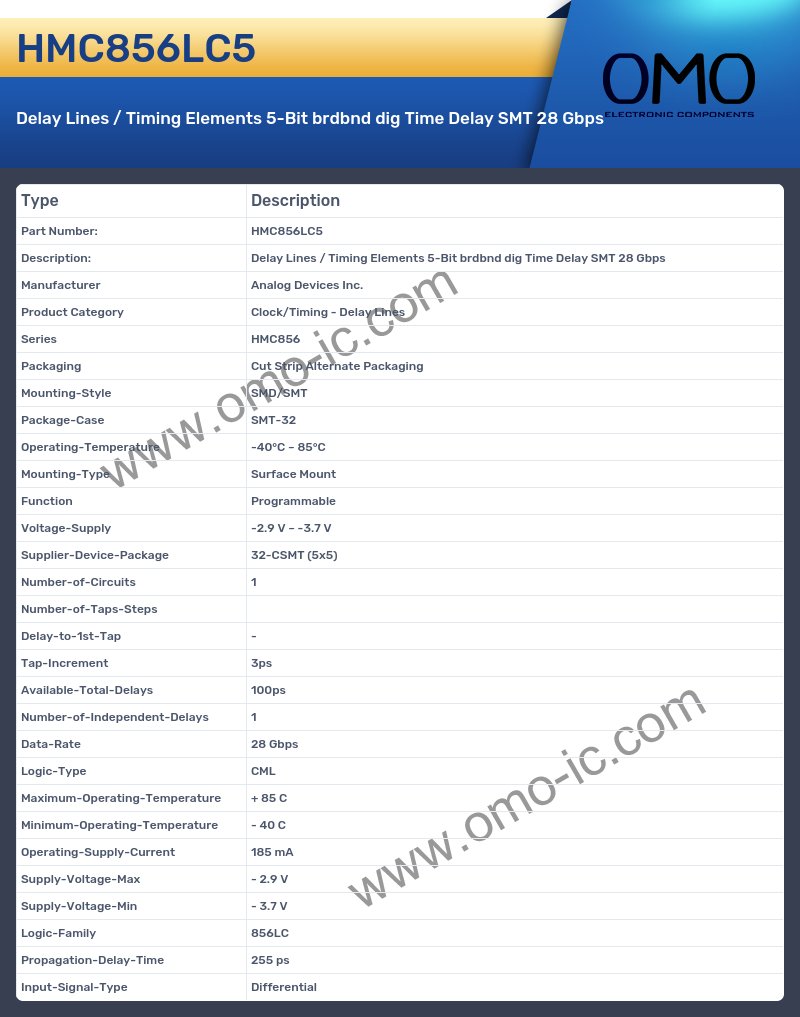

HMC856LC5 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Clock/Timing - Delay Lines
• Series HMC856
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SMT-32
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Programmable
• Voltage-Supply -2.9 V ~ -3.7 V
• Supplier-Device-Package 32-CSMT (5x5)
• Number-of-Circuits 1
• Number-of-Taps-Steps
• Delay-to-1st-Tap -
• Tap-Increment 3ps
• Available-Total-Delays 100ps
• Number-of-Independent-Delays 1
• Data-Rate 28 Gbps
• Logic-Type CML
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 185 mA
• Supply-Voltage-Max - 2.9 V
• Supply-Voltage-Min - 3.7 V
• Logic-Family 856LC
• Propagation-Delay-Time 255 ps
• Input-Signal-Type Differential
