HV9805MG-G

HV9805MG-G Overview

Product belongs to the - series. This product is categorized as LED Lighting Drivers Type: AC DC Offline Switcher Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.005051 oz SMD/SMT Mounting-Style MSOP-10 This product's - range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: - Versatile Lighting applications for maximum usability Supplier device package: 10-MSOP Number-of-Outputs: 1 Current-Output-Channel is - This product has Yes. Topology: SEPIC, Step-Up (Boost) feedback The maximum voltage supply is 8.6V. The minimum 7.9V required for voltage supply. Output voltage: 20V Dimming control is done through - communication. Power-off control: 625 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C The operating frequency is 100 kHz. Input Voltage Range: 10 V Output current: 800 uA Maximum supply current: 2.5 mA

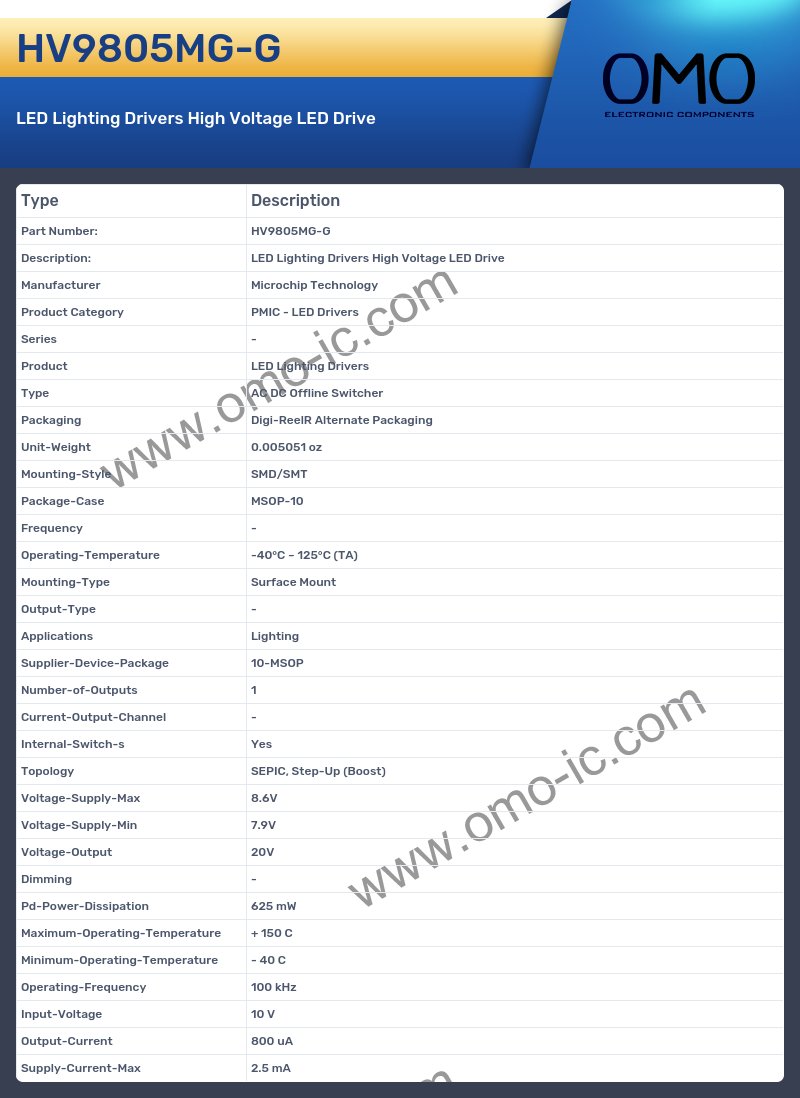

HV9805MG-G Image

HV9805MG-G Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - LED Drivers
• Series -
• Product LED Lighting Drivers
• Type AC DC Offline Switcher
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.005051 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-10
• Frequency -
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type -
• Applications Lighting
• Supplier-Device-Package 10-MSOP
• Number-of-Outputs 1
• Current-Output-Channel -
• Internal-Switch-s Yes
• Topology SEPIC, Step-Up (Boost)
• Voltage-Supply-Max 8.6V
• Voltage-Supply-Min 7.9V
• Voltage-Output 20V
• Dimming -
• Pd-Power-Dissipation 625 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 100 kHz
• Input-Voltage 10 V
• Output-Current 800 uA
• Supply-Current-Max 2.5 mA
