IRF520

IRF520 Overview

Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 60 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 20 ns of 16 ns. This product has a 30 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 9.2 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. The 270 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 19 ns This product has a 8.8 ns. This product operates in Enhancement channel mode for optimal performance.

IRF520 Image

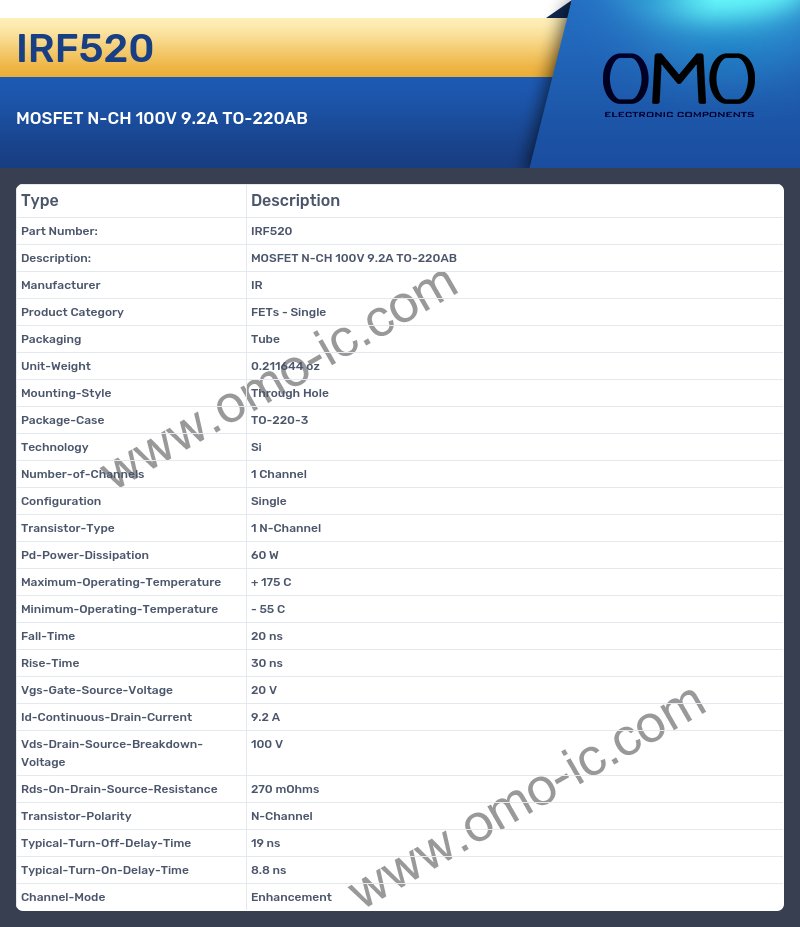

IRF520 Specifications

• Manufacturer IR
• Product Category FETs - Single
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 60 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 20 ns
• Rise-Time 30 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 9.2 A
• Vds-Drain-Source-Breakdown-Voltage 100 V
• Rds-On-Drain-Source-Resistance 270 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 19 ns
• Typical-Turn-On-Delay-Time 8.8 ns
• Channel-Mode Enhancement
