ISO1540D

ISO1540D Overview

Product belongs to the - series. Type: I2C Tube Alternate Packaging is the packaging method for this product 8-SOIC (0.154", 3.90mm Width) Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 8-SOIC This product's Bidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/2/2 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: - The minimum pulse width distortion is 80ns, 21ns.

ISO1540D Image

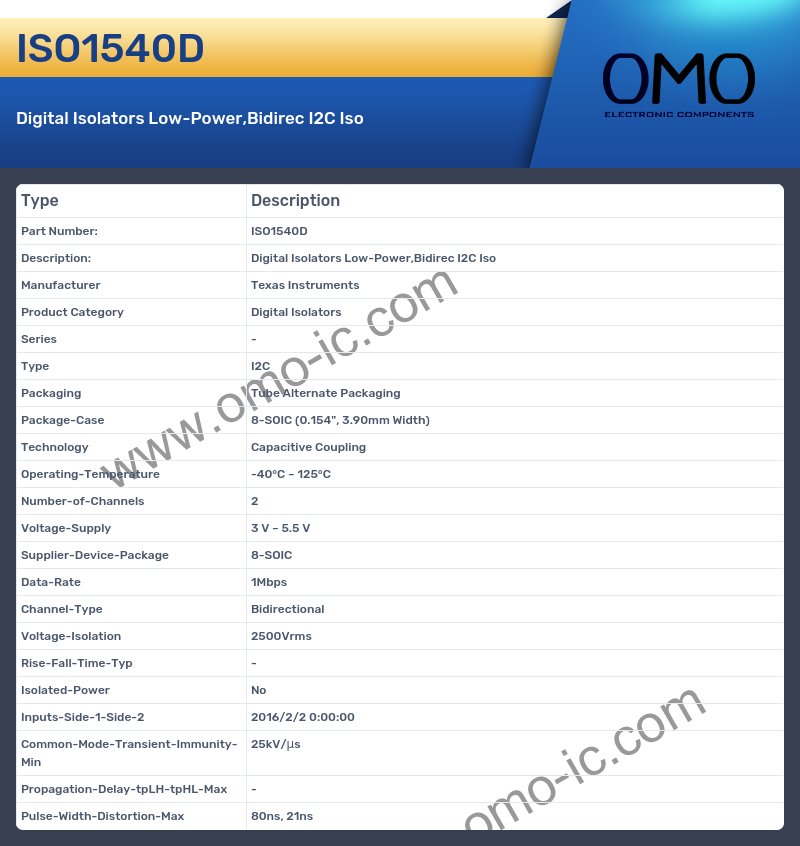

ISO1540D Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series -
• Type I2C
• Packaging Tube Alternate Packaging
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 2
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Data-Rate 1Mbps
• Channel-Type Bidirectional
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ -
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/2/2 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max -
• Pulse-Width-Distortion-Max 80ns, 21ns
