ISO3086DW

ISO3086DW Overview

Product belongs to the ISO3086 series. Type: RS422, RS485 Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 85°C Number of channels: 3 Voltage Supply Range: 3.15 V ~ 5.5 V, 4.5 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/2/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: - The minimum pulse width distortion is -. Power-off control: 220 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. 8 mA 15 mA is 92 nA. Isolation voltage of 4 kVrms RS-485 protocol is supported. Maximum supply voltage of 5.5 V Minimum supply voltage is 3.15 V

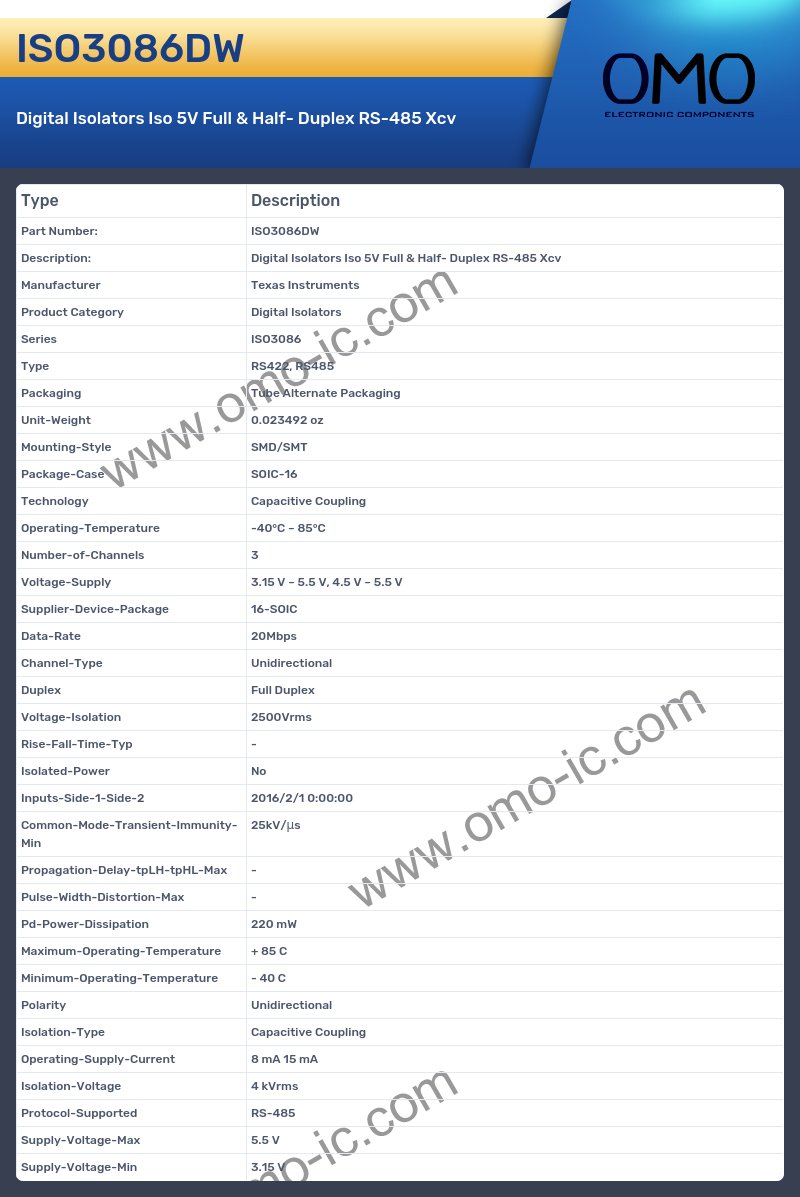

ISO3086DW Image

ISO3086DW Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series ISO3086
• Type RS422, RS485
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 85°C
• Number-of-Channels 3
• Voltage-Supply 3.15 V ~ 5.5 V, 4.5 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 20Mbps
• Channel-Type Unidirectional
• Duplex Full Duplex
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ -
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/2/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max -
• Pulse-Width-Distortion-Max -
• Pd-Power-Dissipation 220 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Unidirectional
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 8 mA 15 mA
• Isolation-Voltage 4 kVrms
• Protocol-Supported RS-485
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3.15 V
