ISO35MDW Overview

Product belongs to the ISO35 series. Type: RS422, RS485 Tube Alternate Packaging is the packaging method for this product Weight of 0.019312 oz SMD/SMT Mounting-Style SOIC-16 Wide Capacitive Coupling is the technology used. Operational temperature range: -55°C ~ 125°C Number of channels: 3 Voltage Supply Range: 3.15 V ~ 3.6 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/2/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: - The minimum pulse width distortion is -. Power-off control: 220 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Capacitive Coupling is the isolation type specified for this product. 8 mA 19 mA is 92 nA. Isolation voltage of 2.5 kVrms RS-485 protocol is supported. The ISO485EVM. Maximum supply voltage of 3.6 V Minimum supply voltage is 3.15 V 100 ns is 23 microseconds.

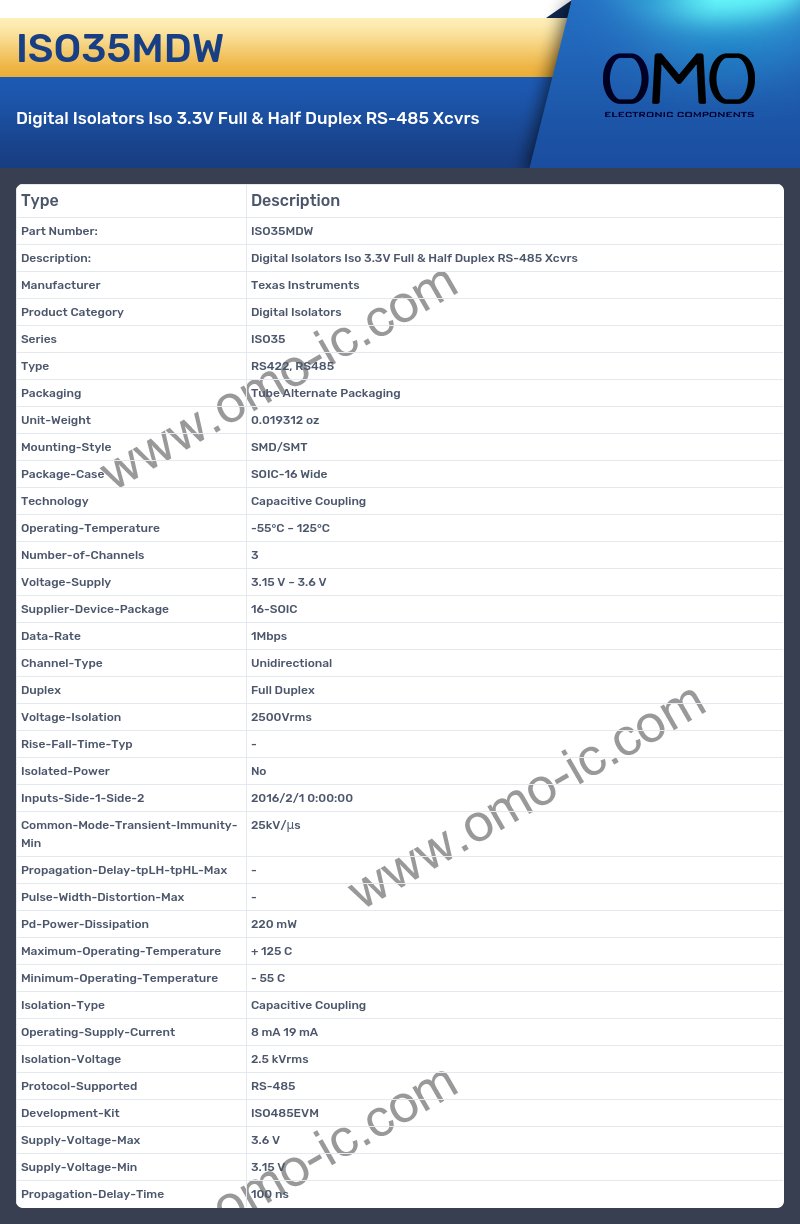

ISO35MDW Image

ISO35MDW Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series ISO35
• Type RS422, RS485
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019312 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Wide
• Technology Capacitive Coupling
• Operating-Temperature -55°C ~ 125°C
• Number-of-Channels 3
• Voltage-Supply 3.15 V ~ 3.6 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 1Mbps
• Channel-Type Unidirectional
• Duplex Full Duplex
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ -
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/2/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max -
• Pulse-Width-Distortion-Max -
• Pd-Power-Dissipation 220 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 8 mA 19 mA
• Isolation-Voltage 2.5 kVrms
• Protocol-Supported RS-485
• Development-Kit ISO485EVM
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3.15 V
• Propagation-Delay-Time 100 ns
