L4949EDMITTR Overview

Product belongs to the L4949ED series. Cut Tape (CT) is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SO Up to 28V voltage input Number-of-Outputs: 1 Output Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum Input Voltage: 28 V Output current: 100 mA The product's + 5 V is 5.1 V. Load regulation is 30 mV. The voltage regulation accuracy of this product is 1 %. Input bias current of 200 uA This product has a 300 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.23 V . The 0.1 V at 10 mA. The maximum 250 mV at 10 mA is 360 mV. This product's 20 mV is 0.01 %/V.

L4949EDMITTR Image

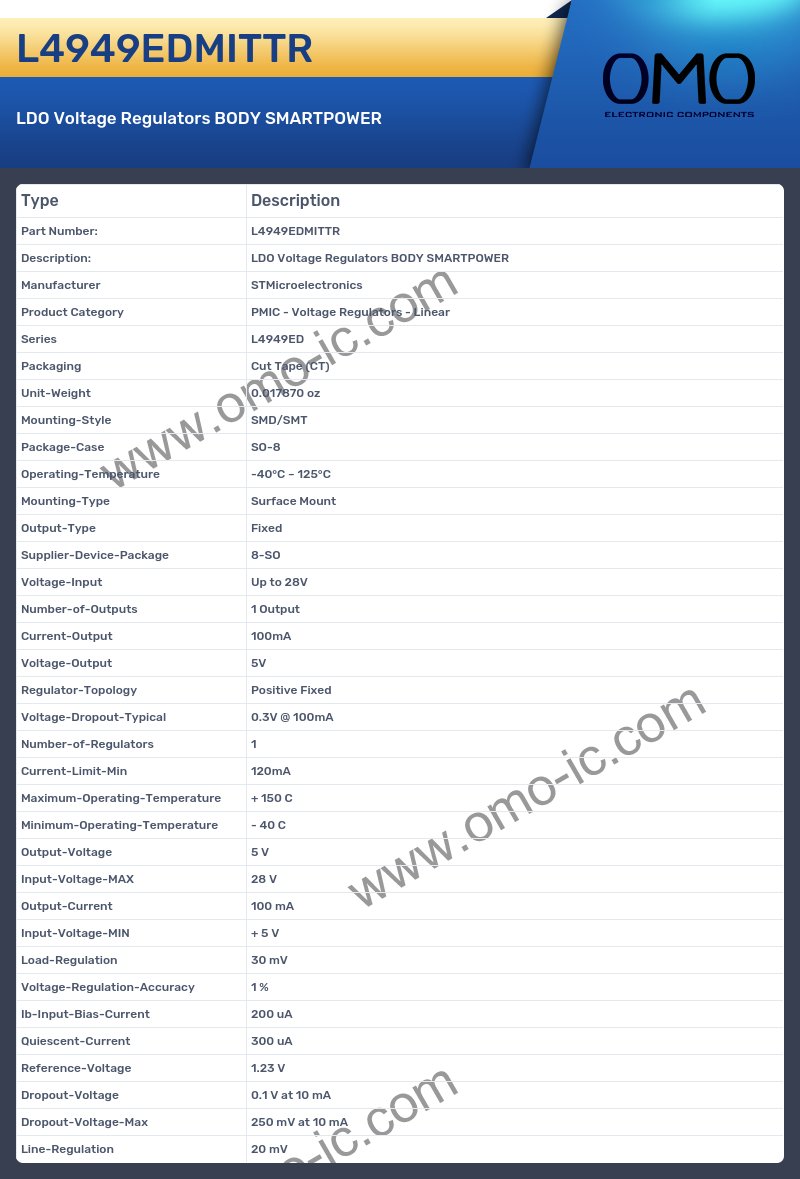

L4949EDMITTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series L4949ED
• Packaging Cut Tape (CT)
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SO
• Voltage-Input Up to 28V
• Number-of-Outputs 1 Output
• Current-Output 100mA
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.3V @ 100mA
• Number-of-Regulators 1
• Current-Limit-Min 120mA
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage-MAX 28 V
• Output-Current 100 mA
• Input-Voltage-MIN + 5 V
• Load-Regulation 30 mV
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 200 uA
• Quiescent-Current 300 uA
• Reference-Voltage 1.23 V
• Dropout-Voltage 0.1 V at 10 mA
• Dropout-Voltage-Max 250 mV at 10 mA
• Line-Regulation 20 mV
