L4949EDTR-E

L4949EDTR-E Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as Voltage Regulators Type: Multifunction Low Drop Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Supplier device package: 8-SO Up to 28V voltage input Number-of-Outputs: 1 Output Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Output voltage: 5 V Maximum Input Voltage: 28 V Output current: 1 A Load regulation is 30 mV. The maximum 500 mV is 360 mV. This product's 20 mV is 0.01 %/V.

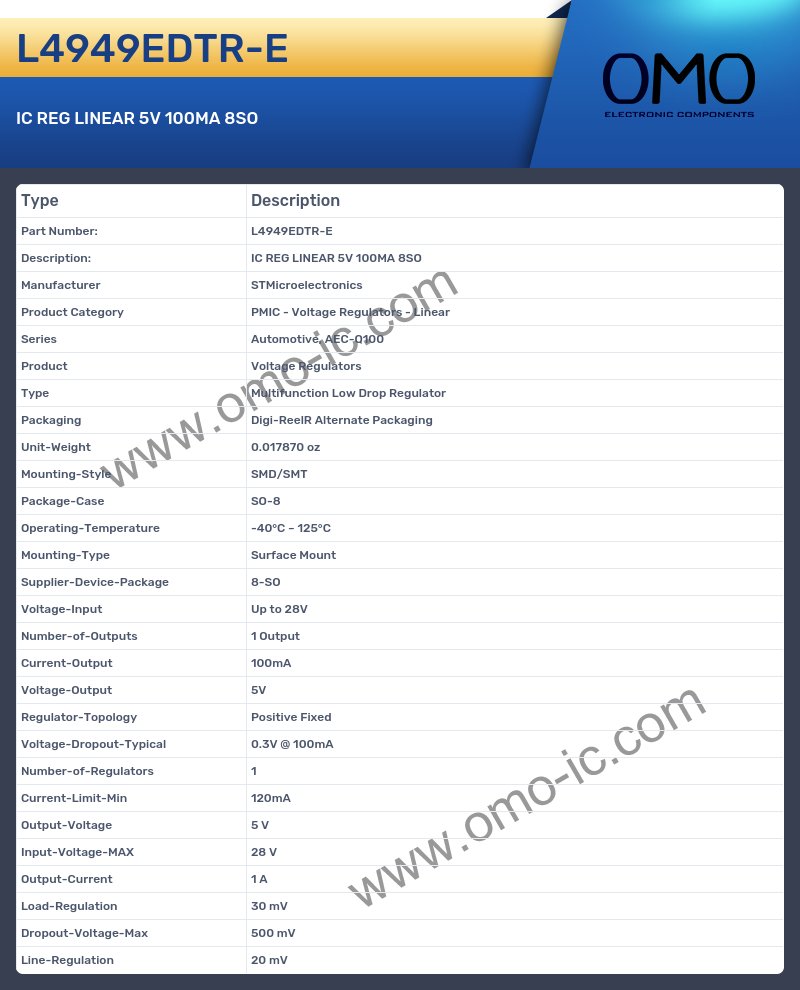

L4949EDTR-E Image

L4949EDTR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series Automotive, AEC-Q100
• Product Voltage Regulators
• Type Multifunction Low Drop Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SO
• Voltage-Input Up to 28V
• Number-of-Outputs 1 Output
• Current-Output 100mA
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.3V @ 100mA
• Number-of-Regulators 1
• Current-Limit-Min 120mA
• Output-Voltage 5 V
• Input-Voltage-MAX 28 V
• Output-Current 1 A
• Load-Regulation 30 mV
• Dropout-Voltage-Max 500 mV
• Line-Regulation 20 mV
