L4970A

L4970A Overview

Product belongs to the L4970 series. Type: Step-Down Tube is the packaging method for this product Through Hole Mounting-Style MULTIWATT-15 Operational temperature range: -40°C ~ 150°C (TJ) Through Hole mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 15-Multiwatt Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 200kHz for optimal performance. The Positive. Minimum fixed output voltage is 5.1V . The value of No is included as a product attribute. The minimum input voltage is 15V. The 50V. Output voltage: 40 V Maximum Input Voltage: 50 V Output current: 10 A Switching frequency is 180 kHz to 220 kHz

L4970A Image

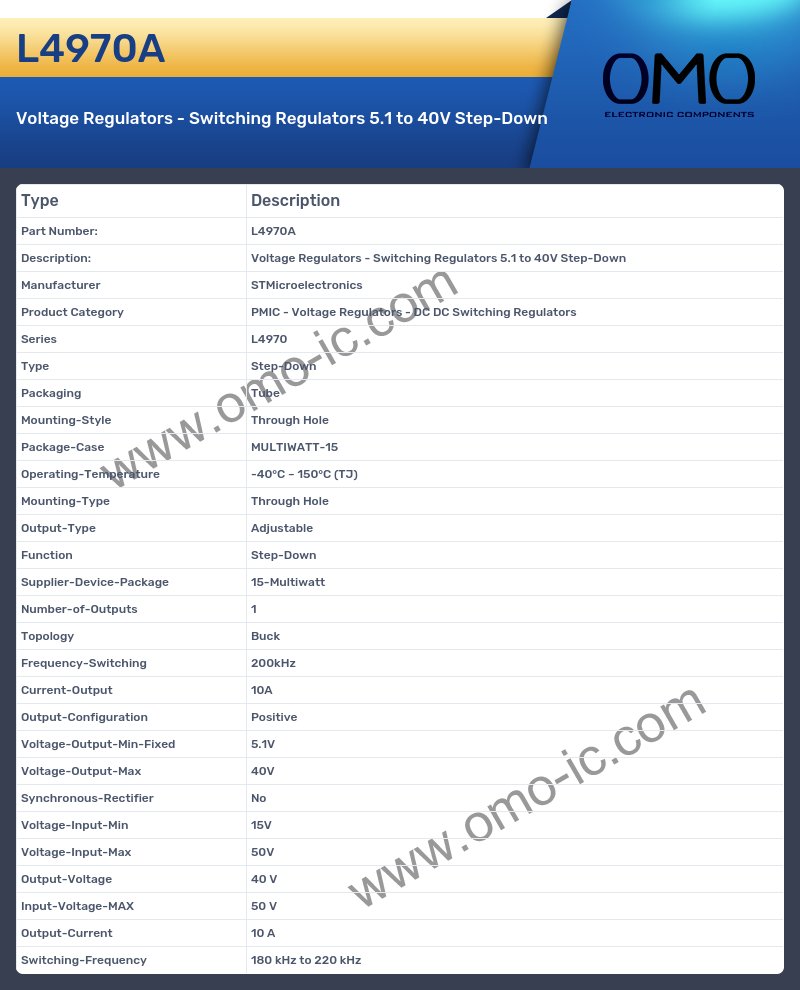

L4970A Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series L4970
• Type Step-Down
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case MULTIWATT-15
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 15-Multiwatt
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 200kHz
• Current-Output 10A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 5.1V
• Voltage-Output-Max 40V
• Synchronous-Rectifier No
• Voltage-Input-Min 15V
• Voltage-Input-Max 50V
• Output-Voltage 40 V
• Input-Voltage-MAX 50 V
• Output-Current 10 A
• Switching-Frequency 180 kHz to 220 kHz
