L6228Q Overview

Product belongs to the L6228Q series. This product is categorized as Stepper Motor Controllers / Drivers Type: Bipolar Stepper Motor Driver Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 25 C to + 125 C operating temperature range for diverse applications VFQFPN DMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 8 V ~ 52 V Supplier device package: 32-VFQFPN Exposed Pad (5x5) The Half Bridge (4). Voltage-Load range is 8 V ~ 52 V. - motor type is used for high-performance and efficient operation. This product operates at a 48 V supply voltage for reliable performance.

L6228Q Image

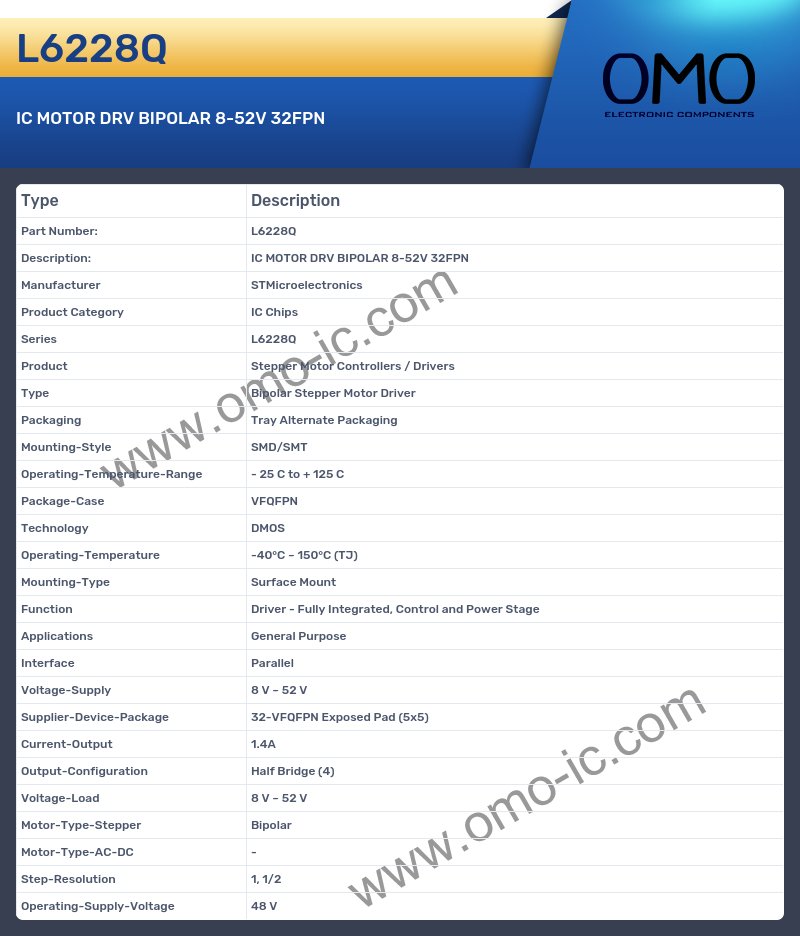

L6228Q Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series L6228Q
• Product Stepper Motor Controllers / Drivers
• Type Bipolar Stepper Motor Driver
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 25 C to + 125 C
• Package-Case VFQFPN
• Technology DMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 8 V ~ 52 V
• Supplier-Device-Package 32-VFQFPN Exposed Pad (5x5)
• Current-Output 1.4A
• Output-Configuration Half Bridge (4)
• Voltage-Load 8 V ~ 52 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC -
• Step-Resolution 1, 1/2
• Operating-Supply-Voltage 48 V
