L6230PD

L6230PD Overview

Product belongs to the L6230 series. This product is categorized as Fan / Motor Controllers / Drivers Type: DMOS Driver Tube is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications PowerSO-36 DMOS is the technology used. Operational temperature range: -25°C ~ 125°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 8 V ~ 52 V Supplier device package: PowerSO-36 The Half Bridge (3). Voltage-Load range is 8 V ~ 52 V. Brushless DC (BLDC) motor type is used for high-performance and efficient operation. This product operates at a 8 V to 52 V supply voltage for reliable performance. 1.4 A is 92 nA.

L6230PD Image

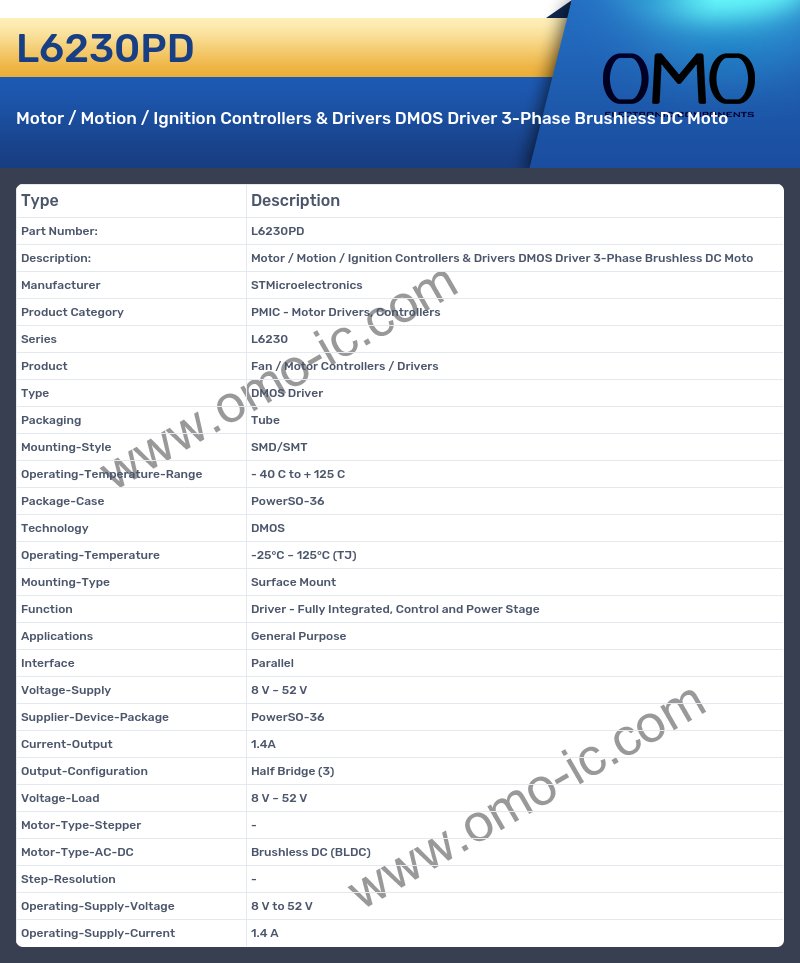

L6230PD Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series L6230
• Product Fan / Motor Controllers / Drivers
• Type DMOS Driver
• Packaging Tube
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case PowerSO-36
• Technology DMOS
• Operating-Temperature -25°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 8 V ~ 52 V
• Supplier-Device-Package PowerSO-36
• Current-Output 1.4A
• Output-Configuration Half Bridge (3)
• Voltage-Load 8 V ~ 52 V
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushless DC (BLDC)
• Step-Resolution -
• Operating-Supply-Voltage 8 V to 52 V
• Operating-Supply-Current 1.4 A
