L6599ATD

L6599ATD Overview

Product belongs to the L6599A series. Bulk is the packaging method for this product Weight of 0.019312 oz SMD/SMT Mounting-Style SOIC-16 Narrow Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Versatile Resonant Converter Controller applications for maximum usability Voltage Supply Range: 8.85 V ~ 16 V Supplier device package: 16-SO - voltage input This product has a 3.5mA of 200μA. Number-of-Outputs: 1 Output Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 8.85 V to 16 V supply voltage for reliable performance. Output voltage: 13.3 V 3.5 mA is 92 nA. Switching frequency is 200 kHz This product has a 30 ns of 16 ns. This product has a 60 ns of 16 ns. Maximum duty cycle of 52 %

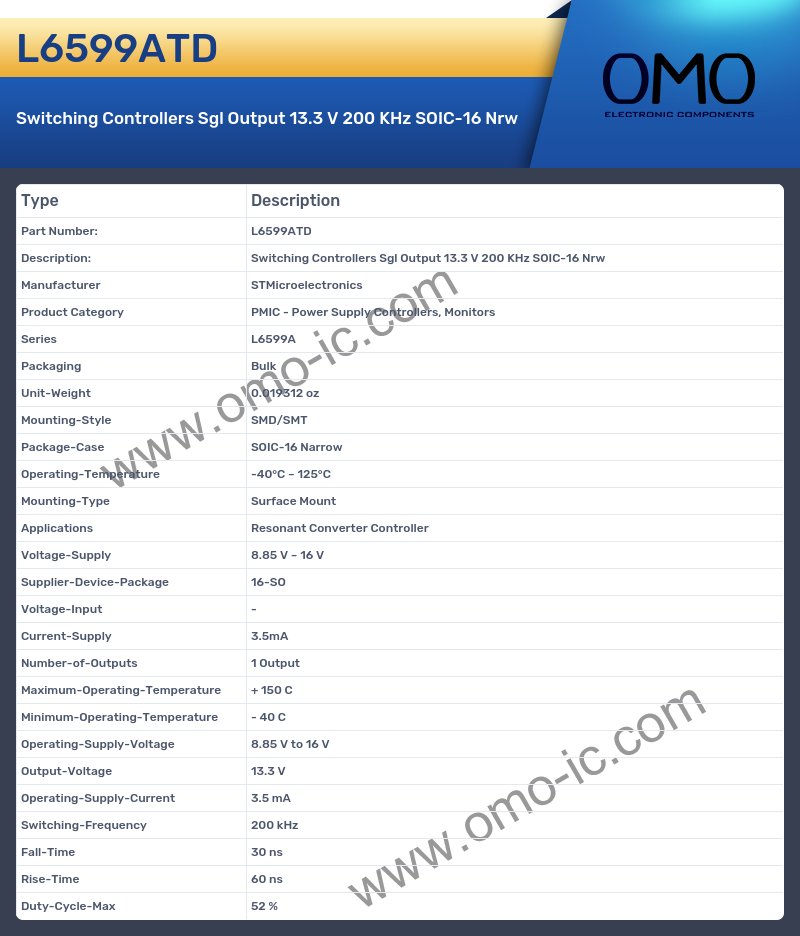

L6599ATD Image

L6599ATD Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Supply Controllers, Monitors
• Series L6599A
• Packaging Bulk
• Unit-Weight 0.019312 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Narrow
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Applications Resonant Converter Controller
• Voltage-Supply 8.85 V ~ 16 V
• Supplier-Device-Package 16-SO
• Voltage-Input -
• Current-Supply 3.5mA
• Number-of-Outputs 1 Output
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 8.85 V to 16 V
• Output-Voltage 13.3 V
• Operating-Supply-Current 3.5 mA
• Switching-Frequency 200 kHz
• Fall-Time 30 ns
• Rise-Time 60 ns
• Duty-Cycle-Max 52 %
