L7915CP Overview

Product belongs to the L7915C series. Tube is the packaging method for this product Weight of 0.090478 oz Through Hole Mounting-Style TO-220-FP-3 Operational temperature range: 0°C ~ 125°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO-220FP Down to -35V voltage input Number-of-Outputs: 1 Output voltage: -15V Negative Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 150 C Minimum operating temperature: 0 C Polarity: Negative Output voltage: - 15 V Maximum Input Voltage: - 23 V Output current: 500 mA The product's - 23 V is 5.1 V. Load regulation is 300 mV. This product's 300 mV is 0.01 %/V.

L7915CP Image

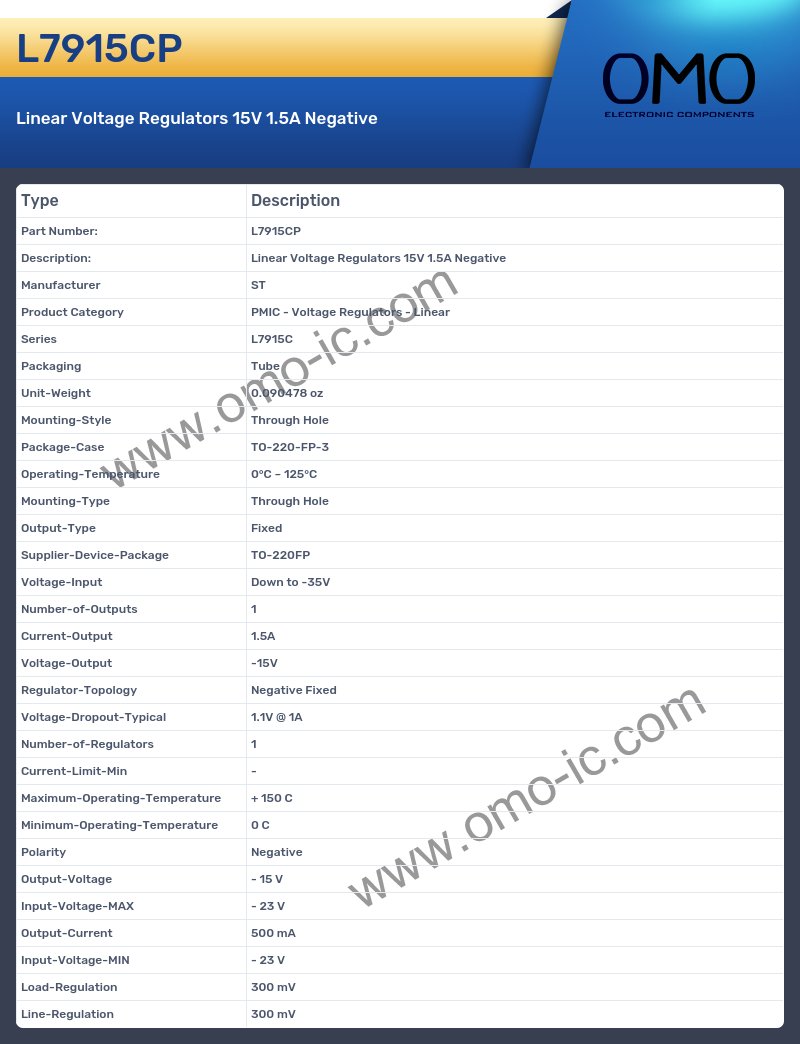

L7915CP Specifications

• Manufacturer ST
• Product Category PMIC - Voltage Regulators - Linear
• Series L7915C
• Packaging Tube
• Unit-Weight 0.090478 oz
• Mounting-Style Through Hole
• Package-Case TO-220-FP-3
• Operating-Temperature 0°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-220FP
• Voltage-Input Down to -35V
• Number-of-Outputs 1
• Current-Output 1.5A
• Voltage-Output -15V
• Regulator-Topology Negative Fixed
• Voltage-Dropout-Typical 1.1V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature 0 C
• Polarity Negative
• Output-Voltage - 15 V
• Input-Voltage-MAX - 23 V
• Output-Current 500 mA
• Input-Voltage-MIN - 23 V
• Load-Regulation 300 mV
• Line-Regulation 300 mV
