L7981A

L7981A Overview

Product belongs to the L7981 series. Tube is the packaging method for this product Weight of 0.002490 oz SMD/SMT Mounting-Style HSOP-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-HSOP Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 250kHz ~ 1MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.6V . The value of No is included as a product attribute. The minimum input voltage is 4.5V. The 28V. Maximum operating temperature of + 150 C Output voltage: 600 mV to 28 V Maximum Input Voltage: 28 V Output current: 3 A Switching frequency is 220 kHz to 275 kHz

L7981A Image

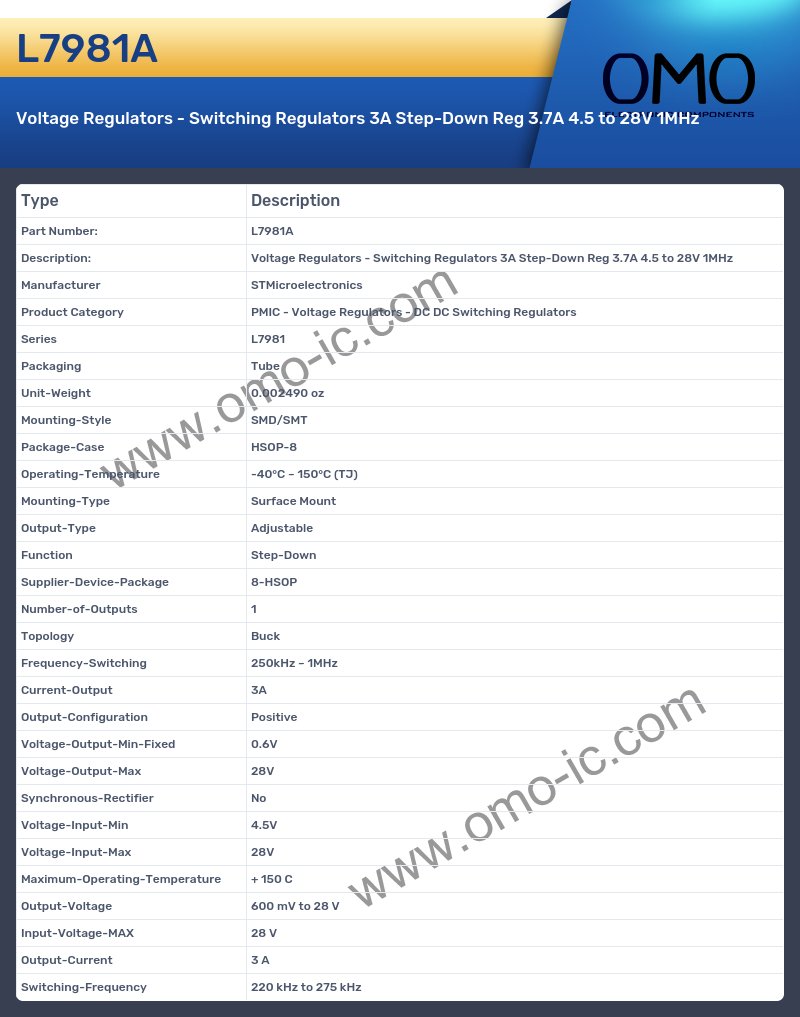

L7981A Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series L7981
• Packaging Tube
• Unit-Weight 0.002490 oz
• Mounting-Style SMD/SMT
• Package-Case HSOP-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-HSOP
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 250kHz ~ 1MHz
• Current-Output 3A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.6V
• Voltage-Output-Max 28V
• Synchronous-Rectifier No
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 28V
• Maximum-Operating-Temperature + 150 C
• Output-Voltage 600 mV to 28 V
• Input-Voltage-MAX 28 V
• Output-Current 3 A
• Switching-Frequency 220 kHz to 275 kHz
