LD1117DT33CTR

LD1117DT33CTR Overview

Product belongs to the LD1117DT3 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012346 oz SMD/SMT Mounting-Style DPAK-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: D-Pak Up to 15V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 12 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Maximum Input Voltage: 15 V Output current: 950 mA Load regulation is 10 mV. The voltage regulation accuracy of this product is 1 %. Input bias current of 5 mA This product has a 10 mA of 7 mA, making it ideal for low-power applications. The 1 V at 100 mA. The maximum 1.1 V is 360 mV. This product's 6 mV is 0.01 %/V.

LD1117DT33CTR Image

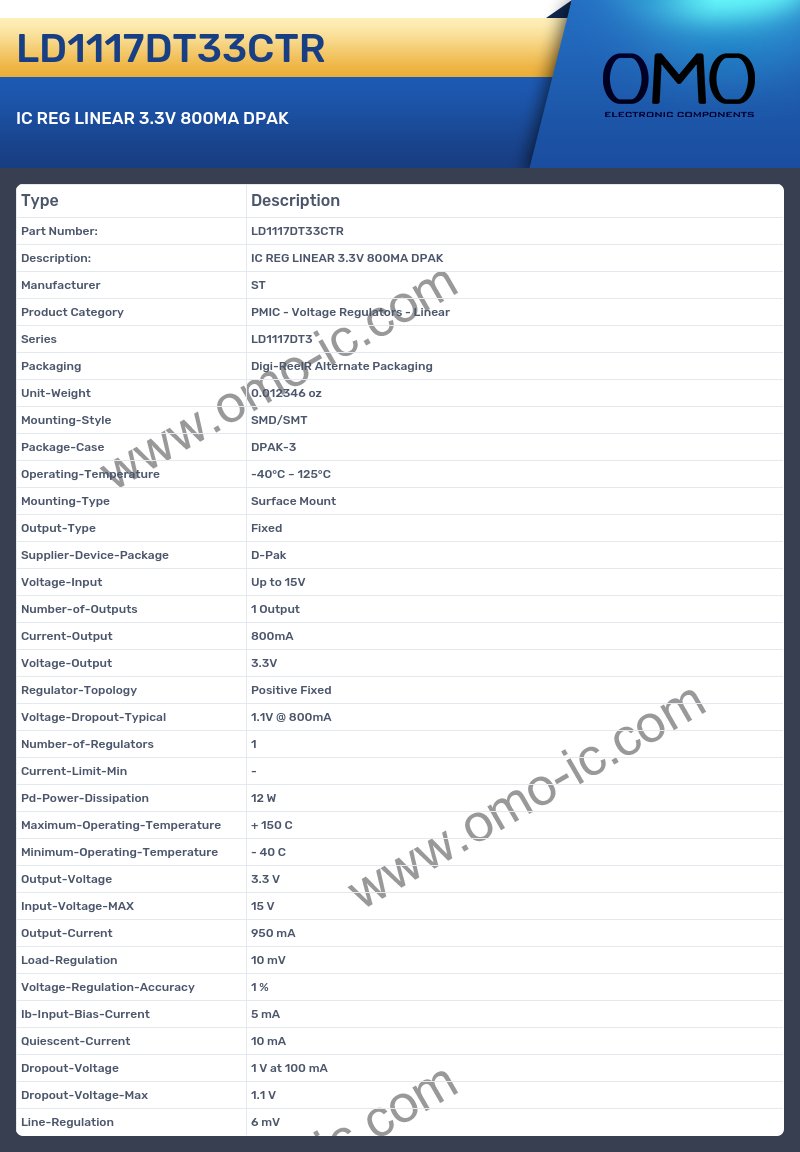

LD1117DT33CTR Specifications

• Manufacturer ST
• Product Category PMIC - Voltage Regulators - Linear
• Series LD1117DT3
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.012346 oz
• Mounting-Style SMD/SMT
• Package-Case DPAK-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package D-Pak
• Voltage-Input Up to 15V
• Number-of-Outputs 1 Output
• Current-Output 800mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 1.1V @ 800mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 12 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 15 V
• Output-Current 950 mA
• Load-Regulation 10 mV
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 5 mA
• Quiescent-Current 10 mA
• Dropout-Voltage 1 V at 100 mA
• Dropout-Voltage-Max 1.1 V
• Line-Regulation 6 mV
