LD39150PT-R

LD39150PT-R Overview

Product belongs to the LD39150 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PPAK-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: PPAK 2.5 V ~ 6 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.22 V ~ 5 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.22 V to 5 V Maximum Input Voltage: 6 V Output current: 1.5 A The product's + 2.5 V is 5.1 V. Load regulation is 0.06 % / A. The voltage regulation accuracy of this product is 1.5 %. Input bias current of 1 mA This product has a 2.5 mA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.22 V . The 0.04 V at 300 mA. The maximum 80 mV at 300 mA is 360 mV. This product's 0.04 % is 0.01 %/V.

LD39150PT-R Image

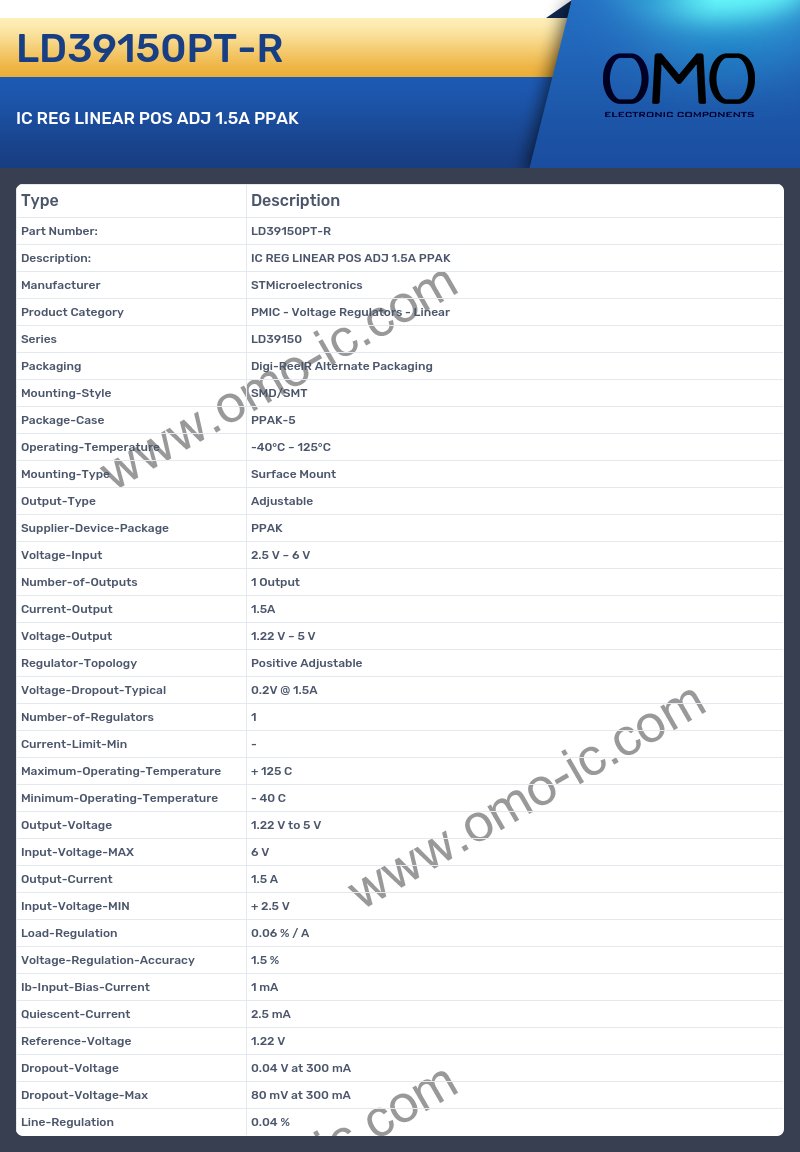

LD39150PT-R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD39150
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PPAK-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package PPAK
• Voltage-Input 2.5 V ~ 6 V
• Number-of-Outputs 1 Output
• Current-Output 1.5A
• Voltage-Output 1.22 V ~ 5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.2V @ 1.5A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.22 V to 5 V
• Input-Voltage-MAX 6 V
• Output-Current 1.5 A
• Input-Voltage-MIN + 2.5 V
• Load-Regulation 0.06 % / A
• Voltage-Regulation-Accuracy 1.5 %
• Ib-Input-Bias-Current 1 mA
• Quiescent-Current 2.5 mA
• Reference-Voltage 1.22 V
• Dropout-Voltage 0.04 V at 300 mA
• Dropout-Voltage-Max 80 mV at 300 mA
• Line-Regulation 0.04 %
