LM2660M

LM2660M Overview

Product belongs to the LM2660 series. Type: Inverting Step Up Tube is the packaging method for this product Weight of 0.006596 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SOIC-Narrow-8 Operational temperature range: -40°C ~ 85°C (TJ) Surface Mount mounting type Output-Type: Fixed Product function is Ratiometric. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 5kHz, 40kHz for optimal performance. The Positive or Negative. Minimum fixed output voltage is -Vin, 2Vin, Vin/2 . The value of No is included as a product attribute. The minimum input voltage is 1.5V. The 5.5V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: - 1.5 V to - 5.5 V Input Voltage Range: 1.5 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 120 mA The product's 1.5 V is 5.1 V.

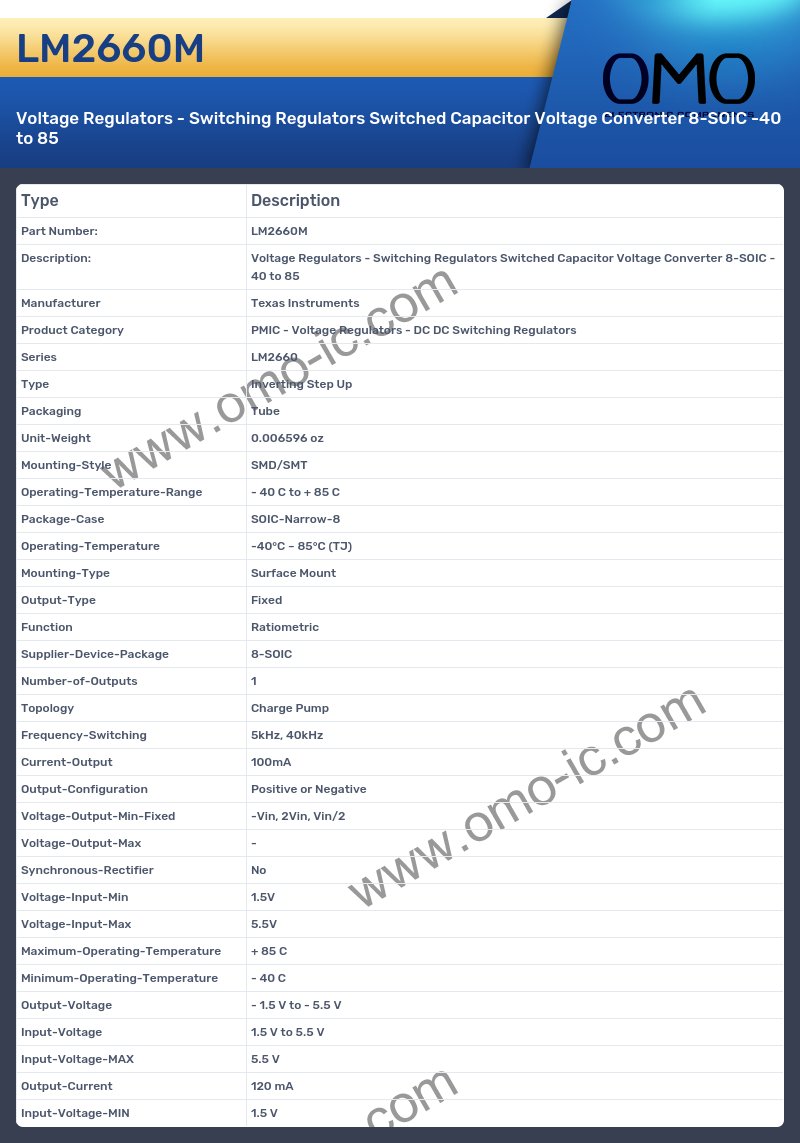

LM2660M Image

LM2660M Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series LM2660
• Type Inverting Step Up
• Packaging Tube
• Unit-Weight 0.006596 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SOIC-Narrow-8
• Operating-Temperature -40°C ~ 85°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Ratiometric
• Supplier-Device-Package 8-SOIC
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 5kHz, 40kHz
• Current-Output 100mA
• Output-Configuration Positive or Negative
• Voltage-Output-Min-Fixed -Vin, 2Vin, Vin/2
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 1.5V
• Voltage-Input-Max 5.5V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage - 1.5 V to - 5.5 V
• Input-Voltage 1.5 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 120 mA
• Input-Voltage-MIN 1.5 V
