LP2951-30D

LP2951-30D Overview

Product belongs to the LP2951-30 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC 2.3 V ~ 30 V voltage input Number-of-Outputs: 1 Output Output voltage: 3V, 1.235 V ~ 30 V Positive Fixed or Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.235 V to 30 V/3 V Maximum Input Voltage: 30 V Output current: 100 mA The product's + 2 V is 5.1 V. Load regulation is 0.2 %. The voltage regulation accuracy of this product is 1.4 %. Input bias current of 75 uA Reference voltage is 1.252 V . The 0.05 V at 100 uA. The maximum 80 mV at 100 uA is 360 mV. This product's 0.2 % / V is 0.01 %/V.

LP2951-30D Image

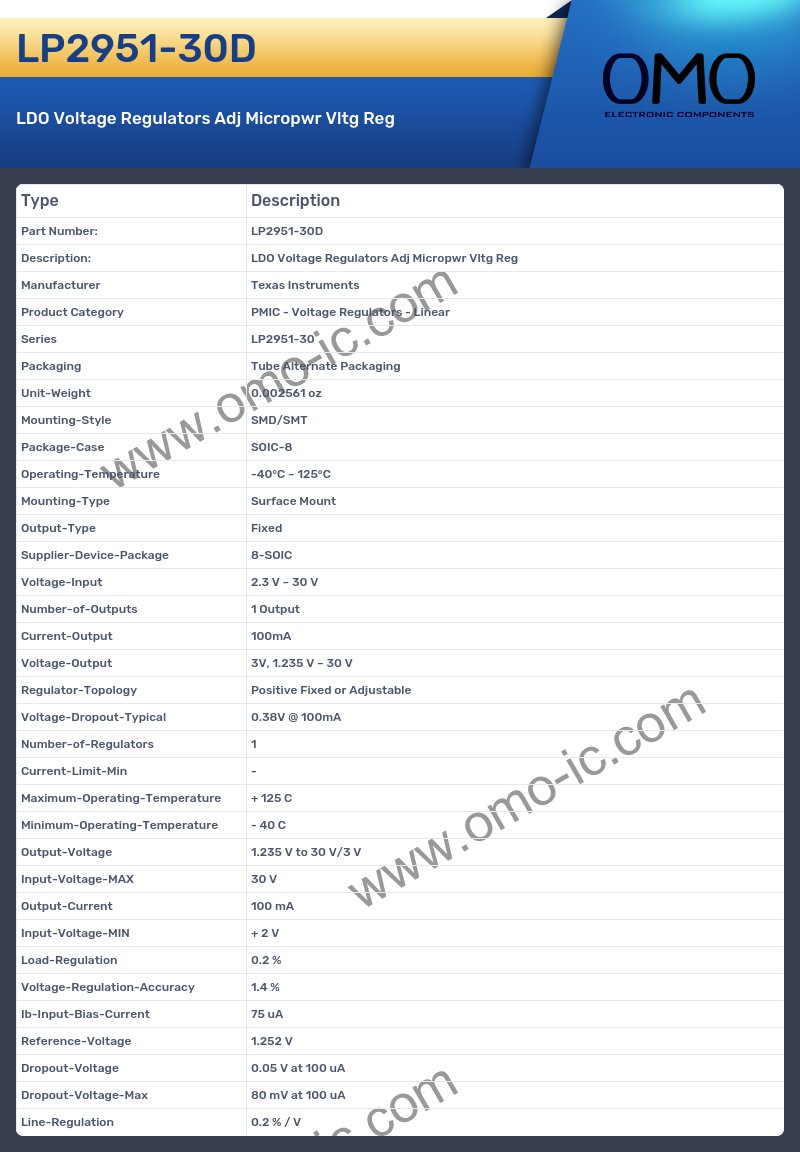

LP2951-30D Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LP2951-30
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Voltage-Input 2.3 V ~ 30 V
• Number-of-Outputs 1 Output
• Current-Output 100mA
• Voltage-Output 3V, 1.235 V ~ 30 V
• Regulator-Topology Positive Fixed or Adjustable
• Voltage-Dropout-Typical 0.38V @ 100mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.235 V to 30 V/3 V
• Input-Voltage-MAX 30 V
• Output-Current 100 mA
• Input-Voltage-MIN + 2 V
• Load-Regulation 0.2 %
• Voltage-Regulation-Accuracy 1.4 %
• Ib-Input-Bias-Current 75 uA
• Reference-Voltage 1.252 V
• Dropout-Voltage 0.05 V at 100 uA
• Dropout-Voltage-Max 80 mV at 100 uA
• Line-Regulation 0.2 % / V
