LP2985AIM5-3.3 Overview

Product belongs to the LP2985-N series. This product is categorized as Micropower Low-Noise Ultra Low-Dropout Regulator Type: Fixed-output voltage Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Tolerance of 4 % Up to 16V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Maximum Input Voltage: 16 V Output current: 0.15 A The product's 2.5 V is 5.1 V. The voltage regulation accuracy of this product is +/- 2.5 %. Input bias current of 65 uA The 0.0001 V at 0 mA 0.007 V at 1 mA 0.04 V at 10 mA 0.12 V at 50 mA 0.28 V at 150 mA. The maximum 0.003 V at 0 mA 0.01 V at 1 mA 0.06 V at 10 mA 0.15 V at 50 mA 0.35 V at 150 mA is 360 mV. This product's 0.014 %/V is 0.01 %/V. The product's 45 dB is -20 dB.

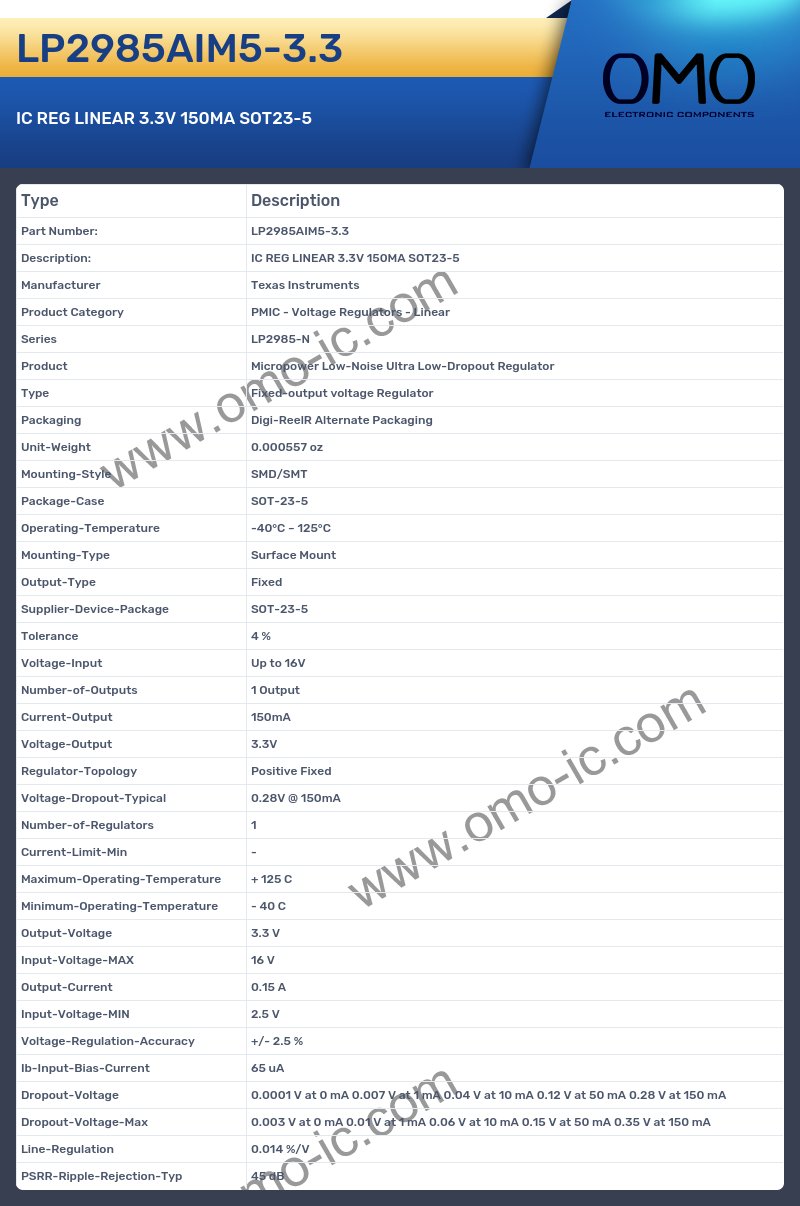

LP2985AIM5-3.3 Image

LP2985AIM5-3.3 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LP2985-N
• Product Micropower Low-Noise Ultra Low-Dropout Regulator
• Type Fixed-output voltage Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000557 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Tolerance 4 %
• Voltage-Input Up to 16V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.28V @ 150mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 16 V
• Output-Current 0.15 A
• Input-Voltage-MIN 2.5 V
• Voltage-Regulation-Accuracy +/- 2.5 %
• Ib-Input-Bias-Current 65 uA
• Dropout-Voltage 0.0001 V at 0 mA 0.007 V at 1 mA 0.04 V at 10 mA 0.12 V at 50 mA 0.28 V at 150 mA
• Dropout-Voltage-Max 0.003 V at 0 mA 0.01 V at 1 mA 0.06 V at 10 mA 0.15 V at 50 mA 0.35 V at 150 mA
• Line-Regulation 0.014 %/V
• PSRR-Ripple-Rejection-Typ 45 dB
