LP339D Overview

Product belongs to the LP339 series. This product is categorized as Analog Comparators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: CMOS, MOS, Open-Collector Number of channels: 4 Channel Supplier device package: 14-SOIC Voltage supply range: 3 V ~ 30 V, ±1.5 V ~ 15 V 4 element 100μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 1.3 us response time Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 25 uA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 5 V General Purpose comparator type Input bias current of 25 nA The 5 mV. The +/- 5 nA. 20 mA

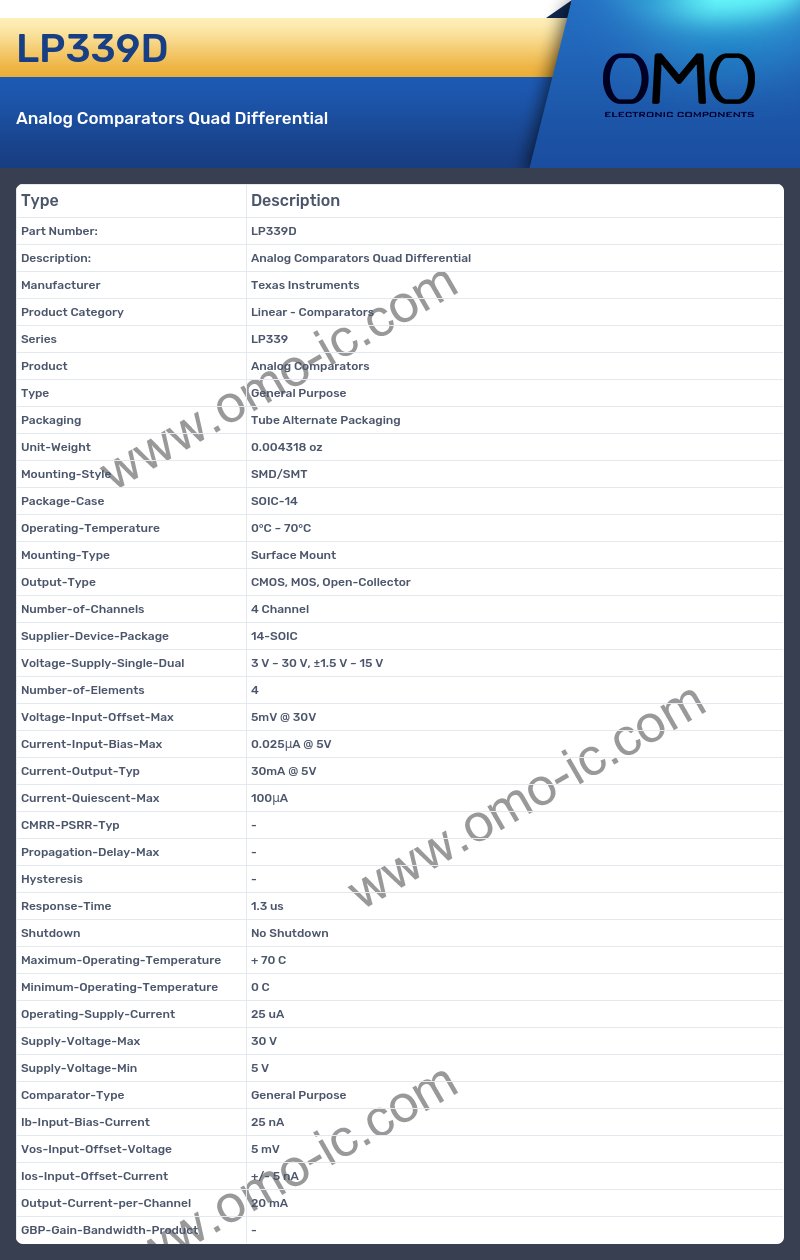

LP339D Image

LP339D Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LP339
• Product Analog Comparators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type CMOS, MOS, Open-Collector
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SOIC
• Voltage-Supply-Single-Dual 3 V ~ 30 V, ±1.5 V ~ 15 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 5mV @ 30V
• Current-Input-Bias-Max 0.025μA @ 5V
• Current-Output-Typ 30mA @ 5V
• Current-Quiescent-Max 100μA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 1.3 us
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 25 uA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 5 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 25 nA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current +/- 5 nA
• Output-Current-per-Channel 20 mA
• GBP-Gain-Bandwidth-Product -
