LP3982IMM-1.8

LP3982IMM-1.8 Overview

Product belongs to the LP3982 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000649 oz SMD/SMT Mounting-Style VSSOP-8 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-VSSOP 2.5 V ~ 6 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.8V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 1.8 V Maximum Input Voltage: 6 V Output current: 0.3 A The product's 2.5 V is 5.1 V. Load regulation is 0.002 %/mA. The voltage regulation accuracy of this product is +/- 2 %. Input bias current of 90 uA The 0.0004 V at 1 mA 0.08 V at 200 mA 0.12 V at 300 mA. The maximum 0.22 V at 200 mA is 360 mV. This product's 0.01 %/V is 0.01 %/V.

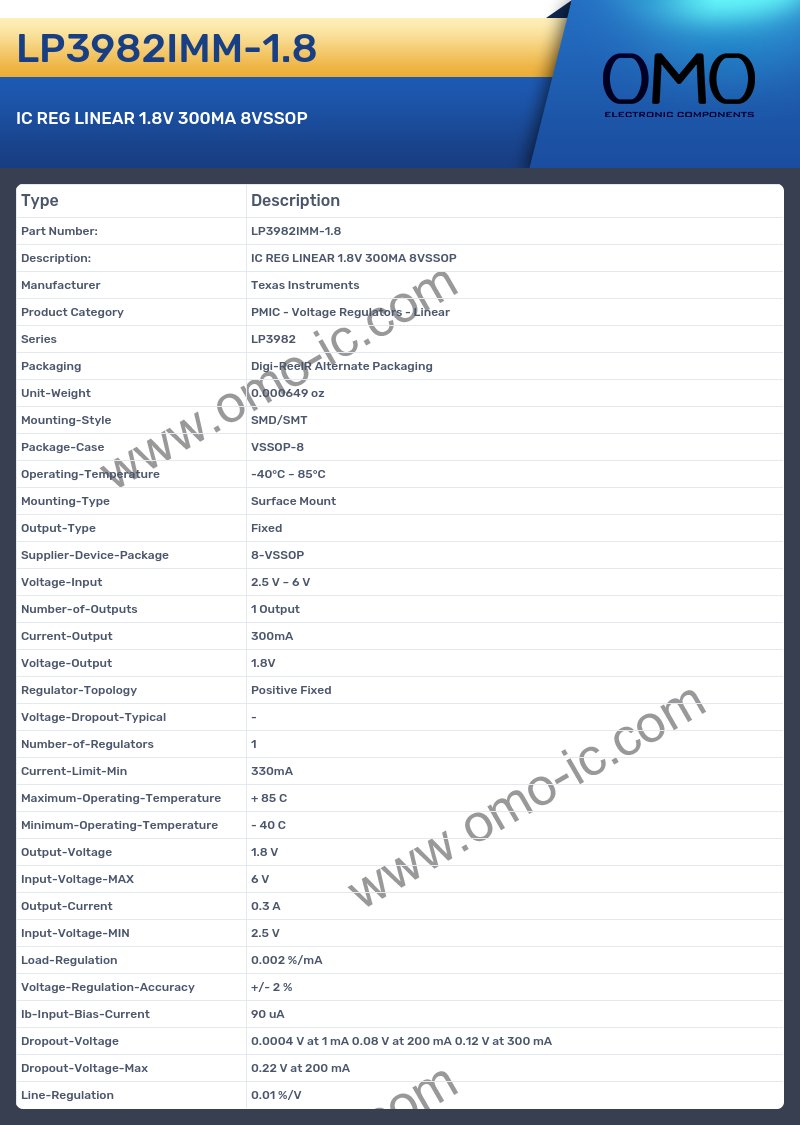

LP3982IMM-1.8 Image

LP3982IMM-1.8 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LP3982
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000649 oz
• Mounting-Style SMD/SMT
• Package-Case VSSOP-8
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-VSSOP
• Voltage-Input 2.5 V ~ 6 V
• Number-of-Outputs 1 Output
• Current-Output 300mA
• Voltage-Output 1.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min 330mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.8 V
• Input-Voltage-MAX 6 V
• Output-Current 0.3 A
• Input-Voltage-MIN 2.5 V
• Load-Regulation 0.002 %/mA
• Voltage-Regulation-Accuracy +/- 2 %
• Ib-Input-Bias-Current 90 uA
• Dropout-Voltage 0.0004 V at 1 mA 0.08 V at 200 mA 0.12 V at 300 mA
• Dropout-Voltage-Max 0.22 V at 200 mA
• Line-Regulation 0.01 %/V
