LT1009CPWR

LT1009CPWR Overview

Product belongs to the LT1009 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001376 oz SMD/SMT Mounting-Style TSSOP-8 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-TSSOP Tolerance of ±0.4% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.5V . 25ppm/°C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 2.5 V Initial accuracy: 0.2 % Maximum shunt current of 10 mA This product has a minimum 400 uA of 50 uA.

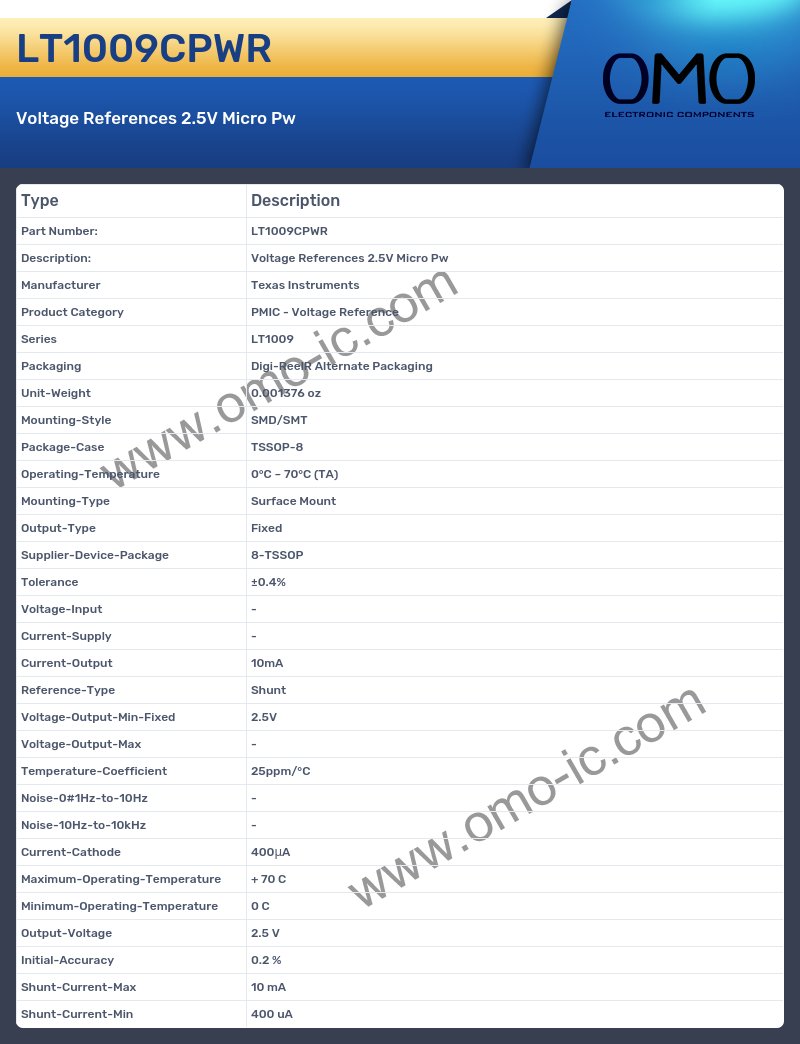

LT1009CPWR Image

LT1009CPWR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series LT1009
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001376 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-TSSOP
• Tolerance ±0.4%
• Voltage-Input -
• Current-Supply -
• Current-Output 10mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 2.5V
• Voltage-Output-Max -
• Temperature-Coefficient 25ppm/°C
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz -
• Current-Cathode 400μA
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 2.5 V
• Initial-Accuracy 0.2 %
• Shunt-Current-Max 10 mA
• Shunt-Current-Min 400 uA
