M40SZ100WMQ6F

M40SZ100WMQ6F Overview

Product belongs to the M40SZ100W series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SO-16 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Active Low Open Drain Supplier device package: 16-SO The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 40 ms Minimum. This product's 2.6V. Power-off control: 1000 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 500 uA is 92 nA. This product does not have Backup capability. Maximum supply voltage of 3.6 V Minimum supply voltage is 2.7 V This product includes No Watchdog This product's 3 V 5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support Chip Enable. This product does not have Yes capability.

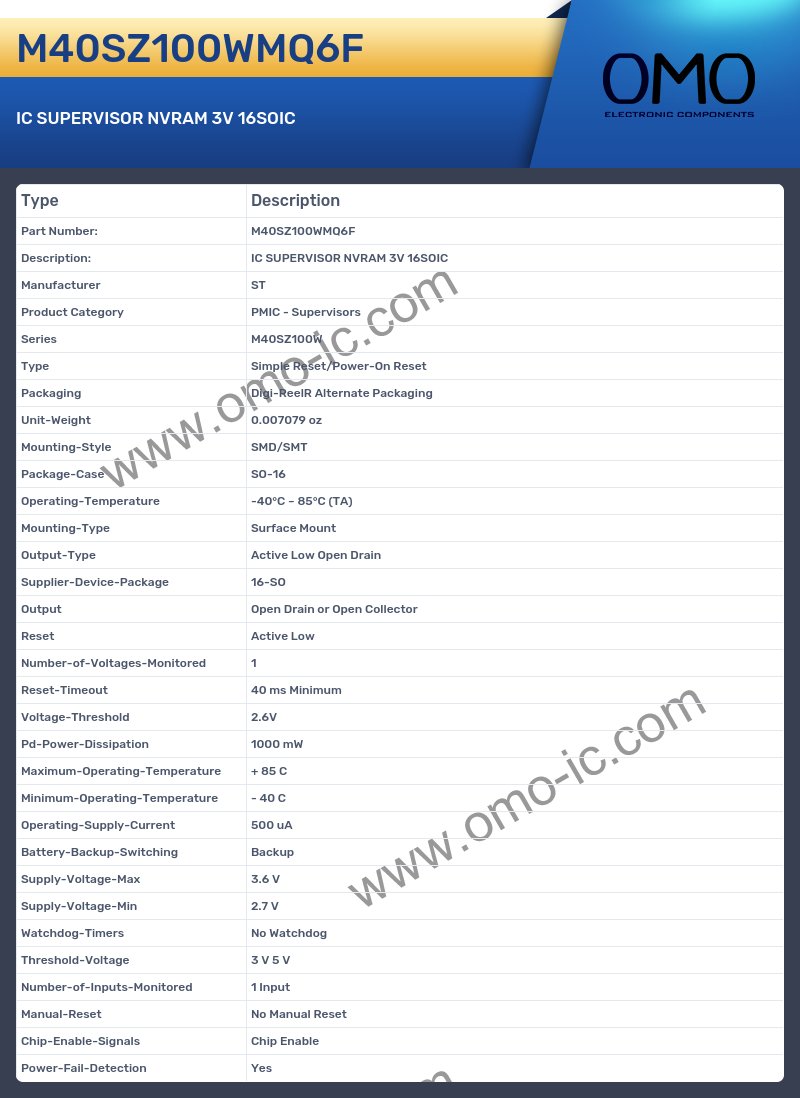

M40SZ100WMQ6F Image

M40SZ100WMQ6F Specifications

• Manufacturer ST
• Product Category PMIC - Supervisors
• Series M40SZ100W
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Package-Case SO-16
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Open Drain
• Supplier-Device-Package 16-SO
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 40 ms Minimum
• Voltage-Threshold 2.6V
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 500 uA
• Battery-Backup-Switching Backup
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.7 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 3 V 5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals Chip Enable
• Power-Fail-Detection Yes
