M74HC04B1R

M74HC04B1R Overview

Product belongs to the 74HC series. Tube is the packaging method for this product Weight of 0.057144 oz Through Hole Mounting-Style PDIP-14 Operational temperature range: -55°C ~ 125°C Through Hole mounting type Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-DIP 6 is 8. 1μA maximum quiescent current. Inverter logic type 0.5 V ~ 1.8 V is a Logic-Level-Low; 1.5 V ~ 4.2 V is the Logic-Level-High Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Maximum supply voltage of 6 V Minimum supply voltage is 2 V HCF40 logic type 75 ns 15 ns 13 ns is 23 microseconds. High-Level-Output-Current of - 5.2 mA 5.2 mA low-level output current

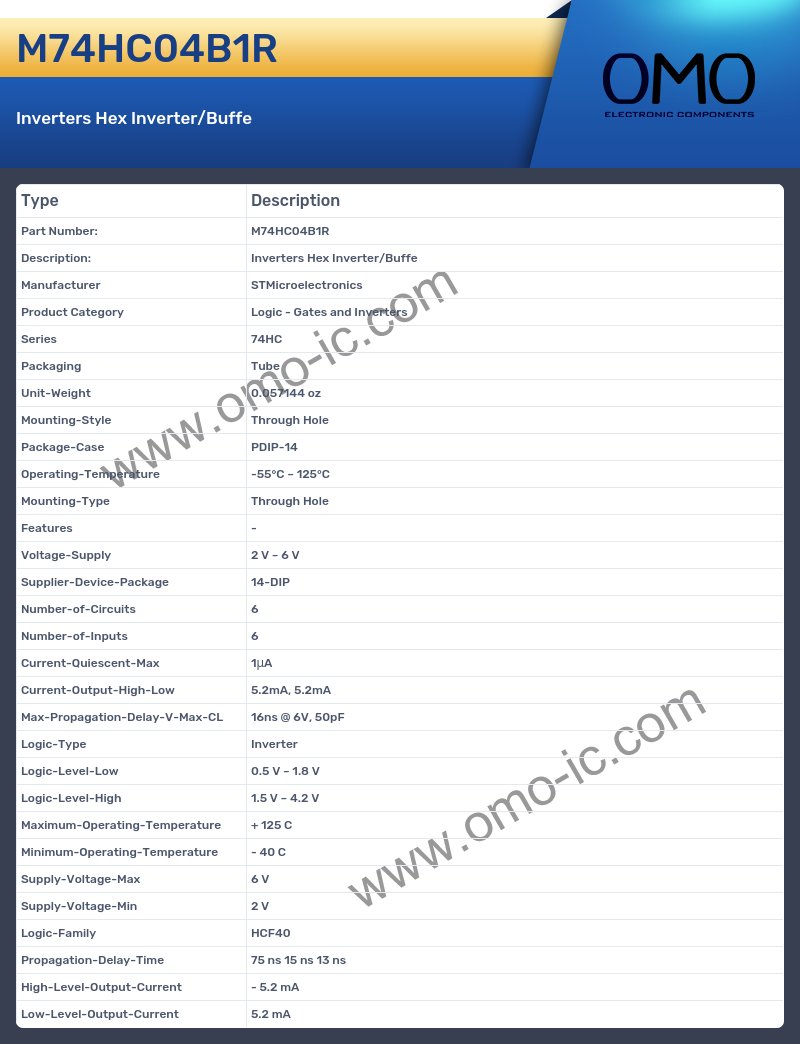

M74HC04B1R Image

M74HC04B1R Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 74HC
• Packaging Tube
• Unit-Weight 0.057144 oz
• Mounting-Style Through Hole
• Package-Case PDIP-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Through Hole
• Features -
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 14-DIP
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 1μA
• Current-Output-High-Low 5.2mA, 5.2mA
• Max-Propagation-Delay-V-Max-CL 16ns @ 6V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.5 V ~ 1.8 V
• Logic-Level-High 1.5 V ~ 4.2 V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Logic-Family HCF40
• Propagation-Delay-Time 75 ns 15 ns 13 ns
• High-Level-Output-Current - 5.2 mA
• Low-Level-Output-Current 5.2 mA
