MCP1703T-1202E/DB Overview

Product belongs to the - series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.008826 oz SMD/SMT Mounting-Style SOT-223-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-223-3 2.7 V ~ 16 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V Maximum Input Voltage: 16 V Output current: 250 mA The product's + 2.7 V is 5.1 V. Load regulation is 1 %. The voltage regulation accuracy of this product is 2 %. Input bias current of 2 uA This product has a 5 uA of 7 mA, making it ideal for low-power applications. The 0.33 V at 250 mA. The maximum 650 mV at 250 mA is 360 mV. This product's 0.1 % / V is 0.01 %/V.

MCP1703T-1202E/DB Image

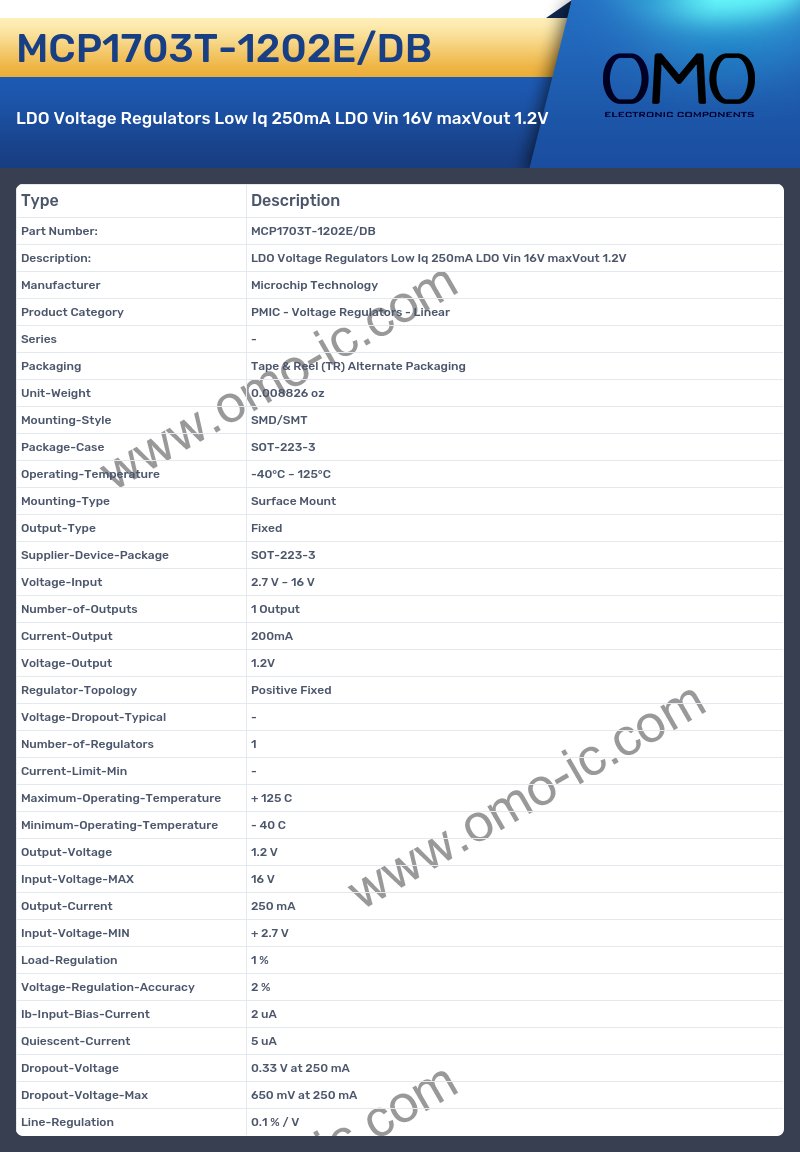

MCP1703T-1202E/DB Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.008826 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-223-3
• Voltage-Input 2.7 V ~ 16 V
• Number-of-Outputs 1 Output
• Current-Output 200mA
• Voltage-Output 1.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V
• Input-Voltage-MAX 16 V
• Output-Current 250 mA
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 1 %
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 2 uA
• Quiescent-Current 5 uA
• Dropout-Voltage 0.33 V at 250 mA
• Dropout-Voltage-Max 650 mV at 250 mA
• Line-Regulation 0.1 % / V
