MCP1825-ADJE/ET

MCP1825-ADJE/ET Overview

Product belongs to the - series. This product is categorized as LDO Regulators Type: Low Votlage Low Quiescent Current Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style D2PAK-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 5-DDPAK Tolerance of 2.5 % 2.1 V ~ 6 V voltage input Number-of-Outputs: 1 Output Output voltage: 0.8 V ~ 5 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 0.8 V to 5 V 120 uA is 92 nA. Maximum Input Voltage: 6 V Output current: 500 mA The product's 2.1 V is 5.1 V. Load regulation is 0.5 %. The voltage regulation accuracy of this product is 0.5 %. Input bias current of 120 uA This product has a 220 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 0.41 V . The 0.21 V at 500 mA. The maximum 350 mV is 360 mV. This product's 0.05 % / V is 0.01 %/V. The product's 60 dB is -20 dB.

MCP1825-ADJE/ET Image

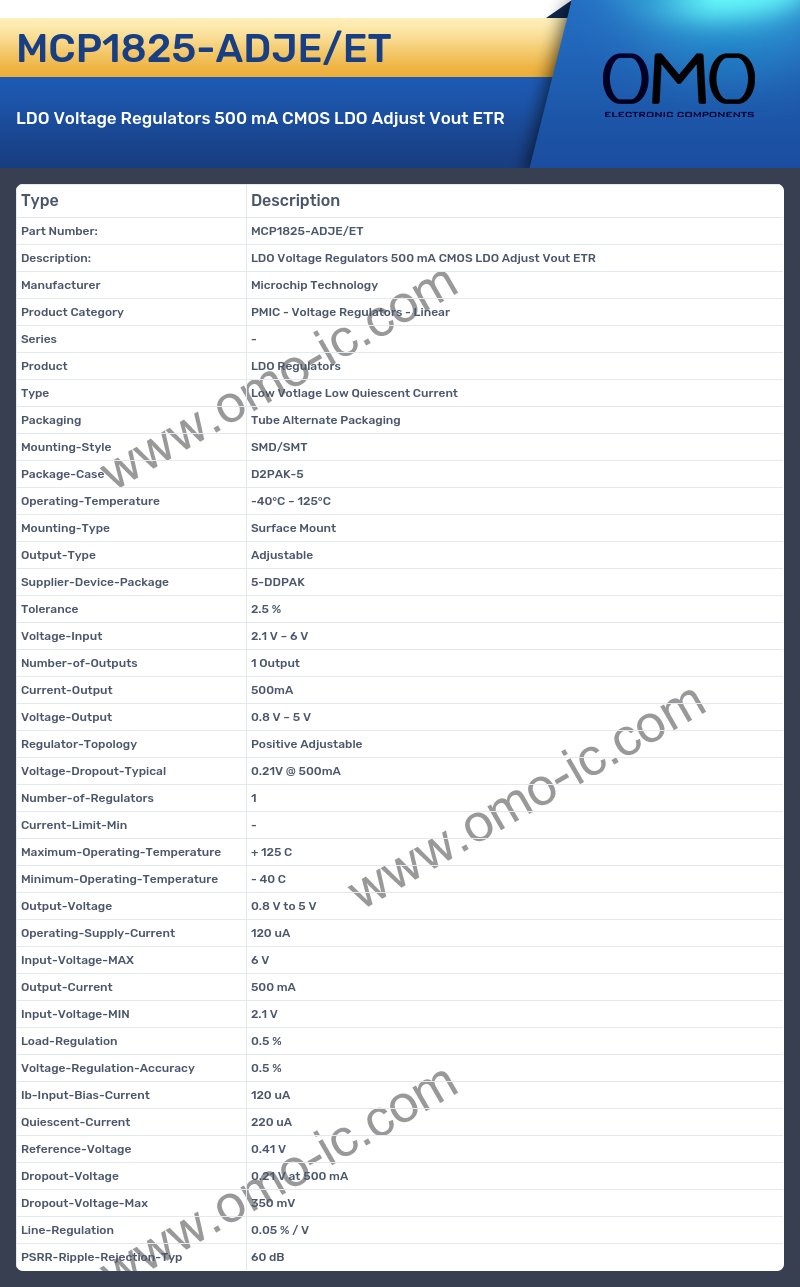

MCP1825-ADJE/ET Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Regulators
• Type Low Votlage Low Quiescent Current
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case D2PAK-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 5-DDPAK
• Tolerance 2.5 %
• Voltage-Input 2.1 V ~ 6 V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 0.8 V ~ 5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.21V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.8 V to 5 V
• Operating-Supply-Current 120 uA
• Input-Voltage-MAX 6 V
• Output-Current 500 mA
• Input-Voltage-MIN 2.1 V
• Load-Regulation 0.5 %
• Voltage-Regulation-Accuracy 0.5 %
• Ib-Input-Bias-Current 120 uA
• Quiescent-Current 220 uA
• Reference-Voltage 0.41 V
• Dropout-Voltage 0.21 V at 500 mA
• Dropout-Voltage-Max 350 mV
• Line-Regulation 0.05 % / V
• PSRR-Ripple-Rejection-Typ 60 dB
