MCP1825ST-5002E/DB

MCP1825ST-5002E/DB Overview

Reel is the packaging method for this product Weight of 0.008826 oz SMD/SMT Mounting-Style Output-Type: Fixed Number-of-Outputs: 1 Output Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum Input Voltage: 6 V Output current: 500 mA The product's + 2.1 V is 5.1 V. Load regulation is 0.5 %. The voltage regulation accuracy of this product is 0.5 %. SOT-223-3 Input bias current of 120 uA This product has a 220 uA of 7 mA, making it ideal for low-power applications. The 0.21 V at 500 mA. The maximum 350 mV at 500 mA is 360 mV. This product's 0.05 % / V is 0.01 %/V.

MCP1825ST-5002E/DB Image

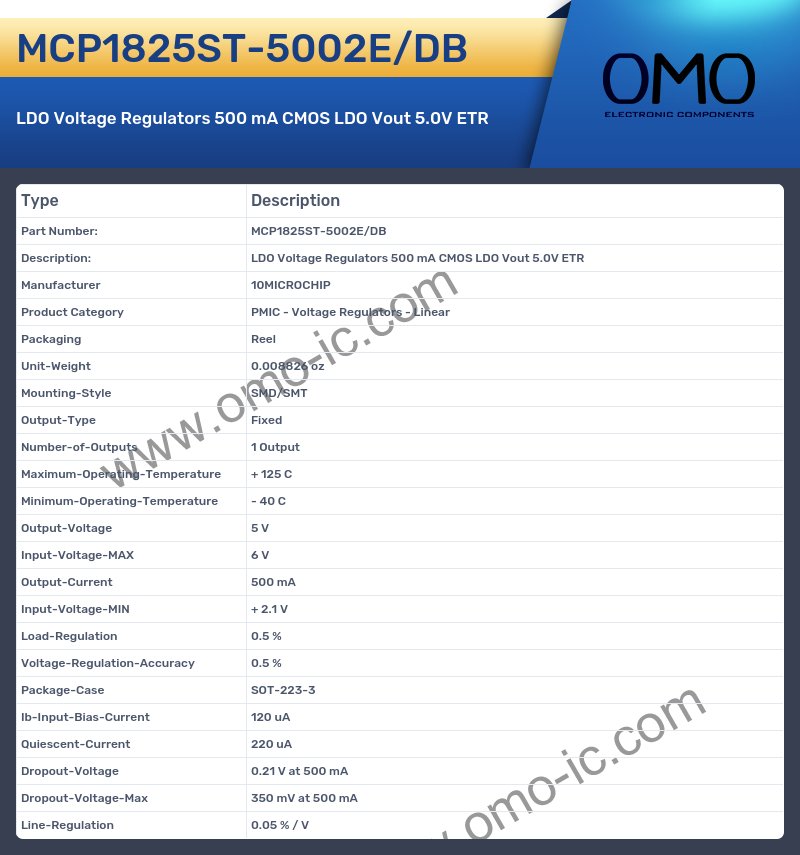

MCP1825ST-5002E/DB Specifications

• Manufacturer 10MICROCHIP
• Product Category PMIC - Voltage Regulators - Linear
• Packaging Reel
• Unit-Weight 0.008826 oz
• Mounting-Style SMD/SMT
• Output-Type Fixed
• Number-of-Outputs 1 Output
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage-MAX 6 V
• Output-Current 500 mA
• Input-Voltage-MIN + 2.1 V
• Load-Regulation 0.5 %
• Voltage-Regulation-Accuracy 0.5 %
• Package-Case SOT-223-3
• Ib-Input-Bias-Current 120 uA
• Quiescent-Current 220 uA
• Dropout-Voltage 0.21 V at 500 mA
• Dropout-Voltage-Max 350 mV at 500 mA
• Line-Regulation 0.05 % / V
