MCP1827-2502E/ET

MCP1827-2502E/ET Overview

Product belongs to the - series. This product is categorized as LDO Regulators Type: Low Votlage Low Quiescent Current Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style D2PAK-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 5-DDPAK Tolerance of 0.5 % Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: 2.5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.5 V 100 nA is 92 nA. Maximum Input Voltage: 6 V Output current: 1.5 A The product's 2.3 V is 5.1 V. Load regulation is 0.5 %. The voltage regulation accuracy of this product is 0.5 %. Input bias current of 120 uA The 0.33 V at 1.5 A. The maximum 600 mV is 360 mV. This product's 0.05 % / V is 0.01 %/V. The product's 60 dB is -20 dB.

MCP1827-2502E/ET Image

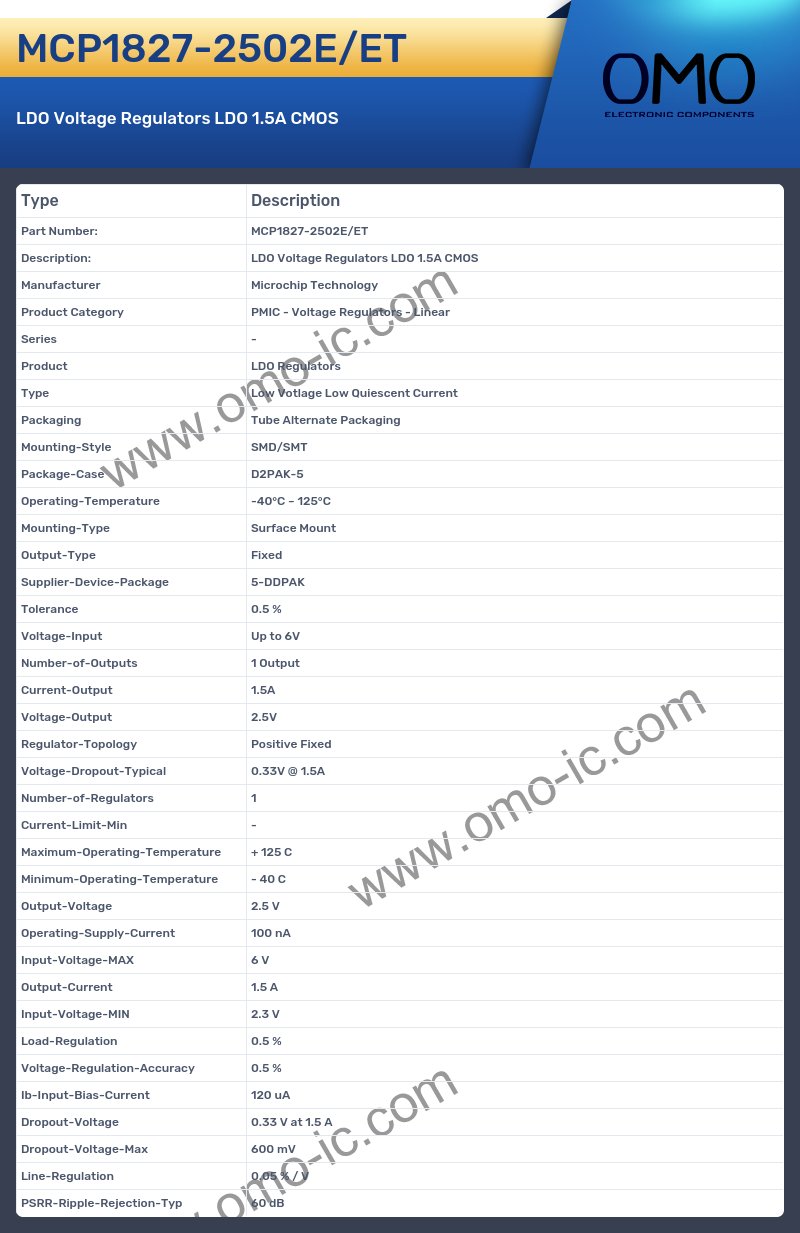

MCP1827-2502E/ET Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Regulators
• Type Low Votlage Low Quiescent Current
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case D2PAK-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 5-DDPAK
• Tolerance 0.5 %
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 1.5A
• Voltage-Output 2.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.33V @ 1.5A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.5 V
• Operating-Supply-Current 100 nA
• Input-Voltage-MAX 6 V
• Output-Current 1.5 A
• Input-Voltage-MIN 2.3 V
• Load-Regulation 0.5 %
• Voltage-Regulation-Accuracy 0.5 %
• Ib-Input-Bias-Current 120 uA
• Dropout-Voltage 0.33 V at 1.5 A
• Dropout-Voltage-Max 600 mV
• Line-Regulation 0.05 % / V
• PSRR-Ripple-Rejection-Typ 60 dB
