MCP4161T-104E/SN Overview

Product belongs to the WiperLock series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.005044 oz SMD/SMT Mounting-Style SOIC-8 Narrow Operational temperature range: -40°C ~ 125°C Interface: SPI Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 8-SOIC 1 is 8. Taper: Linear Configuration Potentiometer 257 taps Resistance-Ohms: 100k Non-Volatile memory type Tolerance of - The 150 ppm/°C. 75 Ohms Resistance: 100 kOhms Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.5 V 3.3 V 5 V supply voltage for reliable performance. 550 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.8 V Single number of POTs The 256. Non Volatile wiper memory This product features a Serial (4-Wire SPI).

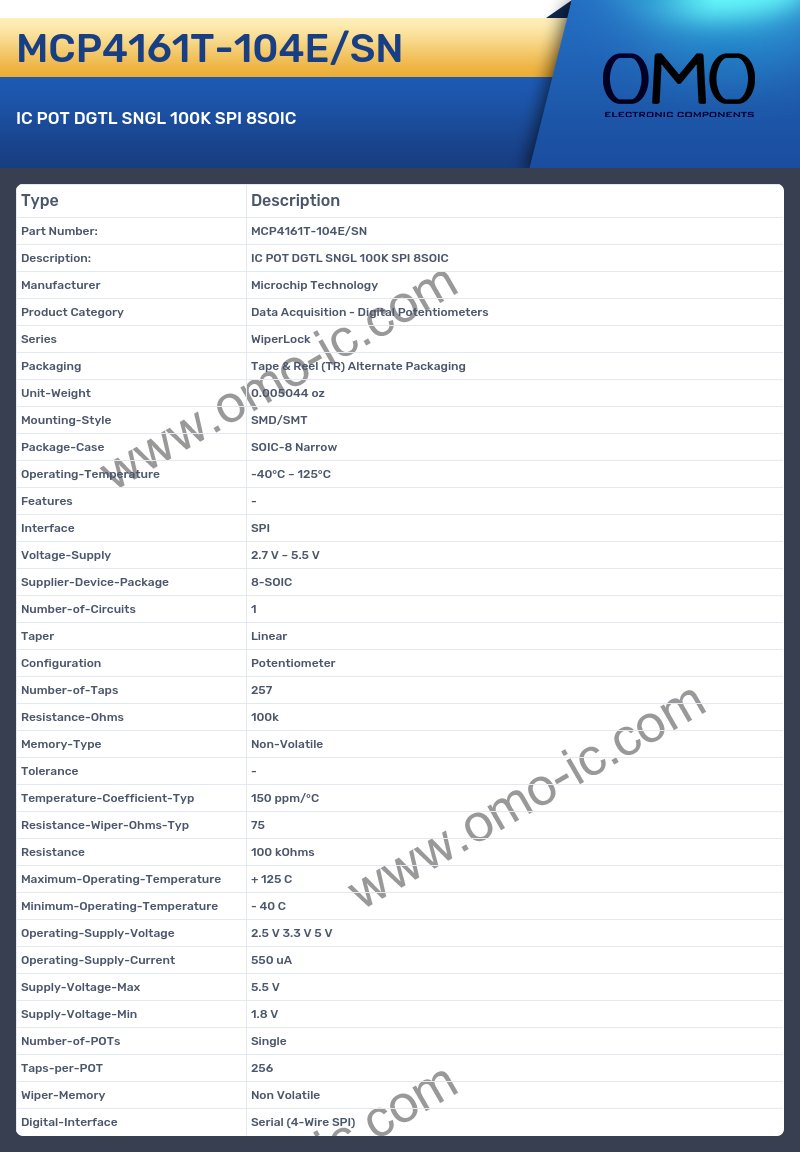

MCP4161T-104E/SN Image

MCP4161T-104E/SN Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Digital Potentiometers
• Series WiperLock
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.005044 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8 Narrow
• Operating-Temperature -40°C ~ 125°C
• Features -
• Interface SPI
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Number-of-Circuits 1
• Taper Linear
• Configuration Potentiometer
• Number-of-Taps 257
• Resistance-Ohms 100k
• Memory-Type Non-Volatile
• Tolerance -
• Temperature-Coefficient-Typ 150 ppm/°C
• Resistance-Wiper-Ohms-Typ 75
• Resistance 100 kOhms
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V 3.3 V 5 V
• Operating-Supply-Current 550 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.8 V
• Number-of-POTs Single
• Taps-per-POT 256
• Wiper-Memory Non Volatile
• Digital-Interface Serial (4-Wire SPI)
