MCP4661T-503E/ST

MCP4661T-503E/ST Overview

Product belongs to the - series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004949 oz SMD/SMT Mounting-Style TSSOP-14 Operational temperature range: -40°C ~ 125°C Interface: I2C Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 14-TSSOP 2 is 8. Taper: Linear Configuration Potentiometer 257 taps Resistance-Ohms: 50k Non-Volatile memory type Tolerance of - The 150 ppm/°C. 75 Ohms Resistance: 50 kOhms Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.5 V 3.3 V 5 V supply voltage for reliable performance. 2.5 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.8 V Dual number of POTs The 256. Non Volatile wiper memory This product features a Serial (2-Wire I2C).

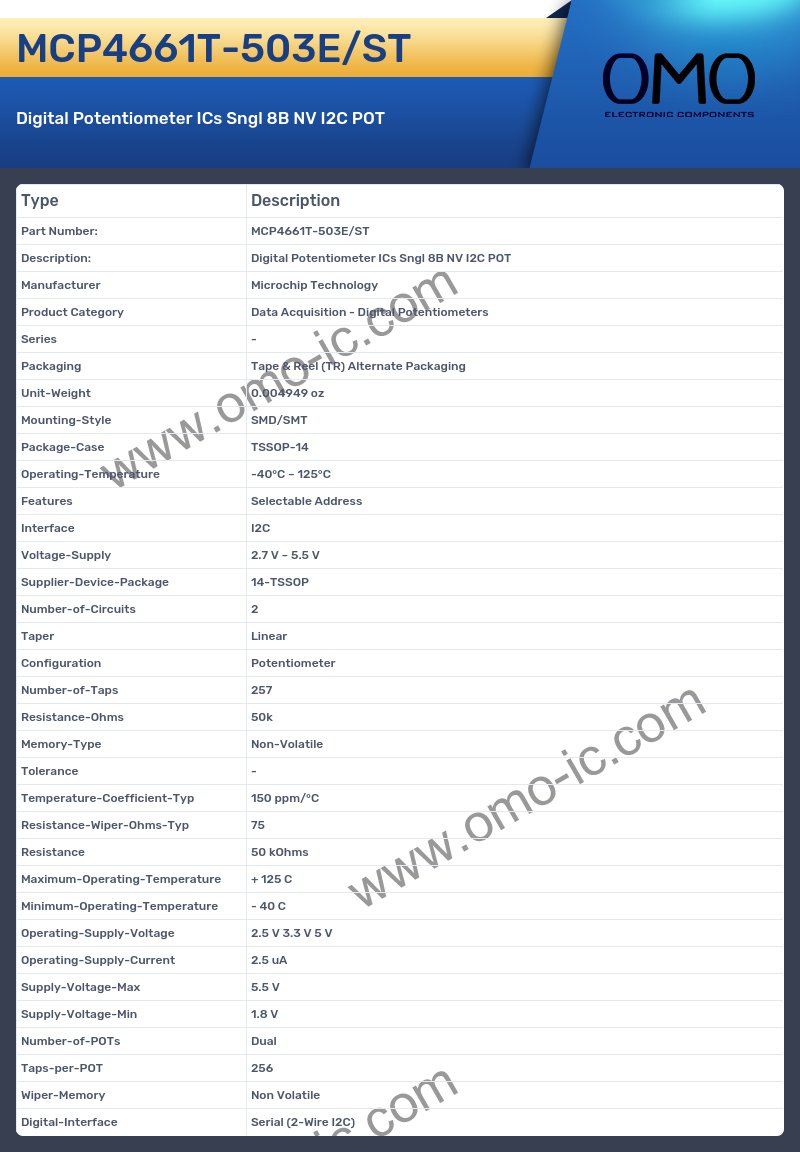

MCP4661T-503E/ST Image

MCP4661T-503E/ST Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Digital Potentiometers
• Series -
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004949 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-14
• Operating-Temperature -40°C ~ 125°C
• Features Selectable Address
• Interface I2C
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 14-TSSOP
• Number-of-Circuits 2
• Taper Linear
• Configuration Potentiometer
• Number-of-Taps 257
• Resistance-Ohms 50k
• Memory-Type Non-Volatile
• Tolerance -
• Temperature-Coefficient-Typ 150 ppm/°C
• Resistance-Wiper-Ohms-Typ 75
• Resistance 50 kOhms
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V 3.3 V 5 V
• Operating-Supply-Current 2.5 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.8 V
• Number-of-POTs Dual
• Taps-per-POT 256
• Wiper-Memory Non Volatile
• Digital-Interface Serial (2-Wire I2C)
