MCP6546T-I/LT

MCP6546T-I/LT Overview

Product belongs to the - series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000705 oz SMD/SMT Mounting-Style SC-70-5 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CMOS, Open-Drain, Rail-to-Rail, TTL Number of channels: 1 Channel Supplier device package: SC-70-5 Voltage supply range: 1.6 V ~ 5.5 V 1 element 1μA maximum quiescent current. Maximum propagation delay: 8μs Hysteresis value of 6.5mV 4 us response time Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 1 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.6 V Input bias current of 1 pA The 7 mV. The 1 pA. The 80 dB. The Negative Rail - 0.3 V to Positive Rail + 0.3 V. 2 mA The CMRR-Common-Mode-Rejection-Ratio is 70 dB.

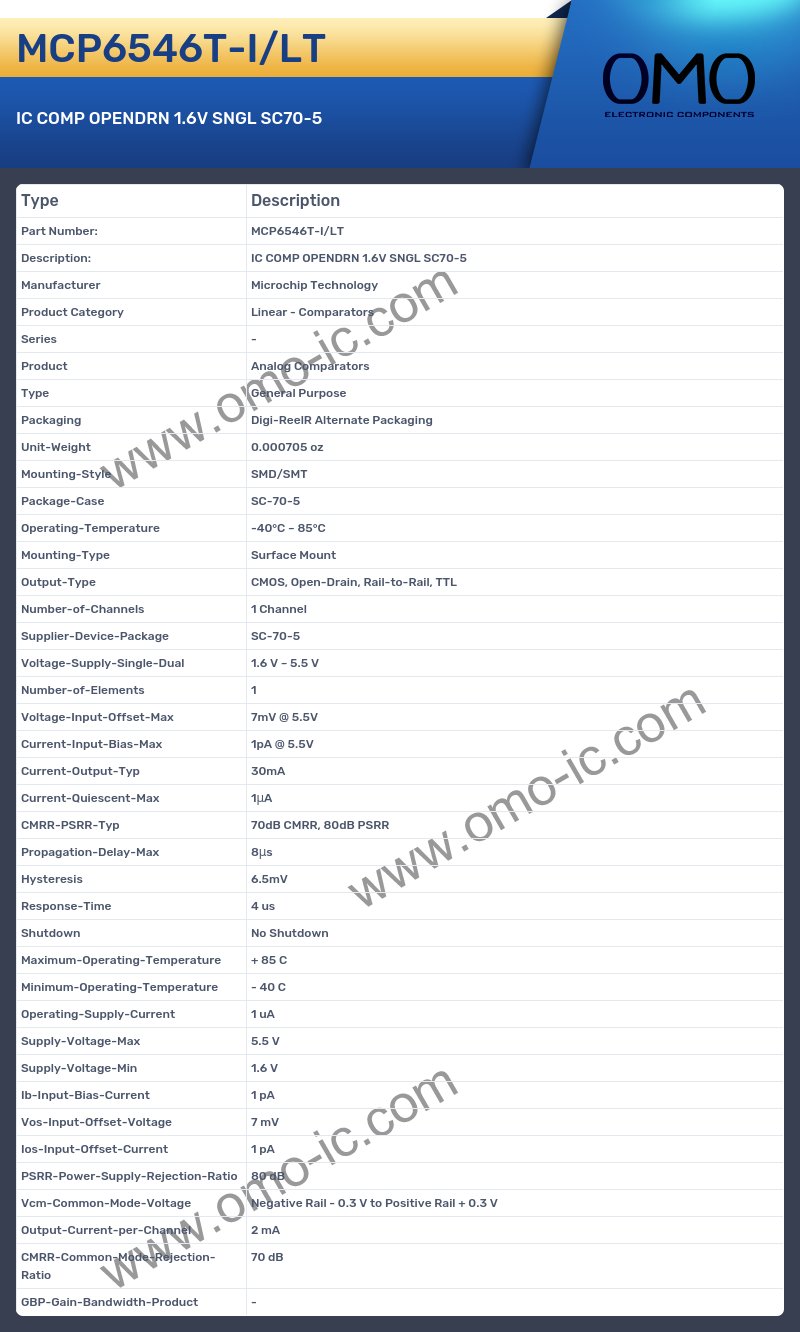

MCP6546T-I/LT Image

MCP6546T-I/LT Specifications

• Manufacturer Microchip Technology
• Product Category Linear - Comparators
• Series -
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000705 oz
• Mounting-Style SMD/SMT
• Package-Case SC-70-5
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Open-Drain, Rail-to-Rail, TTL
• Number-of-Channels 1 Channel
• Supplier-Device-Package SC-70-5
• Voltage-Supply-Single-Dual 1.6 V ~ 5.5 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 7mV @ 5.5V
• Current-Input-Bias-Max 1pA @ 5.5V
• Current-Output-Typ 30mA
• Current-Quiescent-Max 1μA
• CMRR-PSRR-Typ 70dB CMRR, 80dB PSRR
• Propagation-Delay-Max 8μs
• Hysteresis 6.5mV
• Response-Time 4 us
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.6 V
• Ib-Input-Bias-Current 1 pA
• Vos-Input-Offset-Voltage 7 mV
• Ios-Input-Offset-Current 1 pA
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• Vcm-Common-Mode-Voltage Negative Rail - 0.3 V to Positive Rail + 0.3 V
• Output-Current-per-Channel 2 mA
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product -
