OPA541SM Overview

Product belongs to the OPA541 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Through Hole Mounting-Style BiFET is the technology used. Number of channels: 1 Channel The amplifier is of High Output Current Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 25 mA is 92 nA. Maximum supply voltage of 70 V Minimum supply voltage is 20 V TO-3-8 Input bias current of 50 pA The 1 mV. The Negative Rail + 6 V to Positive Rail - 6 V. 10 A The CMRR-Common-Mode-Rejection-Ratio is 95 dB. Maximum dual supply voltage: +/- 35 V Minimum dual supply voltage of +/- 10 V

OPA541SM Image

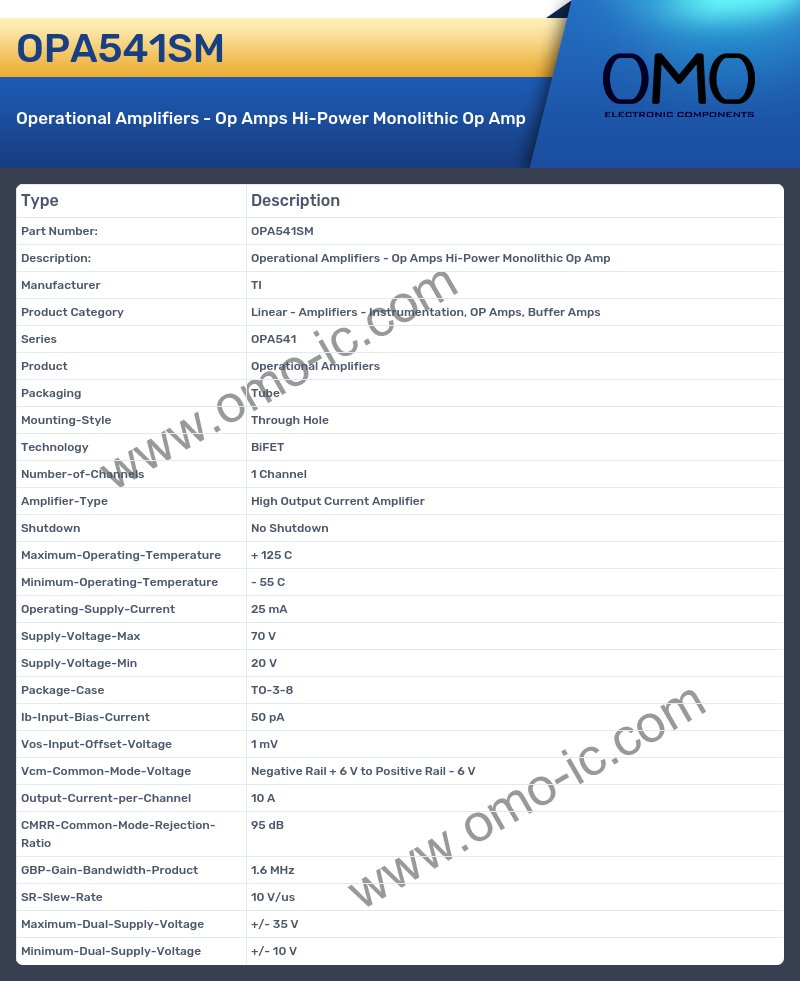

OPA541SM Specifications

• Manufacturer TI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series OPA541
• Product Operational Amplifiers
• Packaging Tube
• Mounting-Style Through Hole
• Technology BiFET
• Number-of-Channels 1 Channel
• Amplifier-Type High Output Current Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 25 mA
• Supply-Voltage-Max 70 V
• Supply-Voltage-Min 20 V
• Package-Case TO-3-8
• Ib-Input-Bias-Current 50 pA
• Vos-Input-Offset-Voltage 1 mV
• Vcm-Common-Mode-Voltage Negative Rail + 6 V to Positive Rail - 6 V
• Output-Current-per-Channel 10 A
• CMRR-Common-Mode-Rejection-Ratio 95 dB
• GBP-Gain-Bandwidth-Product 1.6 MHz
• SR-Slew-Rate 10 V/us
• Maximum-Dual-Supply-Voltage +/- 35 V
• Minimum-Dual-Supply-Voltage +/- 10 V
