P0102BL 5AA4 Overview

Product belongs to the P010XX series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007090 oz SMD/SMT Mounting-Style TO-236-3, SC-59, SOT-23-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Supplier device package: SOT-23-3 5mA of Current-Hold-Ih-Max The Voltage-Off-State is 200V. Voltage-Gate-Trigger-Vgt-Max 800mV 200μA of Current-Gate-Trigger-Igt-Max Maximum 1.7V On-State Voltage Its 500mA Current-On-State-It-AV-Max 800mA is the maximum Current-On-State-It-RMS. 1μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 7A, 8A for 50-60Hz Itsm. SCR-Type: Sensitive Gate; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 200 V Rated Repetitive Off-State Voltage VDRM; 6 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 0.8 V on this product. Gate-Trigger-Current-Igt: 0.2 mA; 7 A Non-Repetitive On-State Current The 1 uA Off-State Leakage Current in VDRM and IDRM. Vf-Forward-Voltage: 1.7 V

P0102BL 5AA4 Image

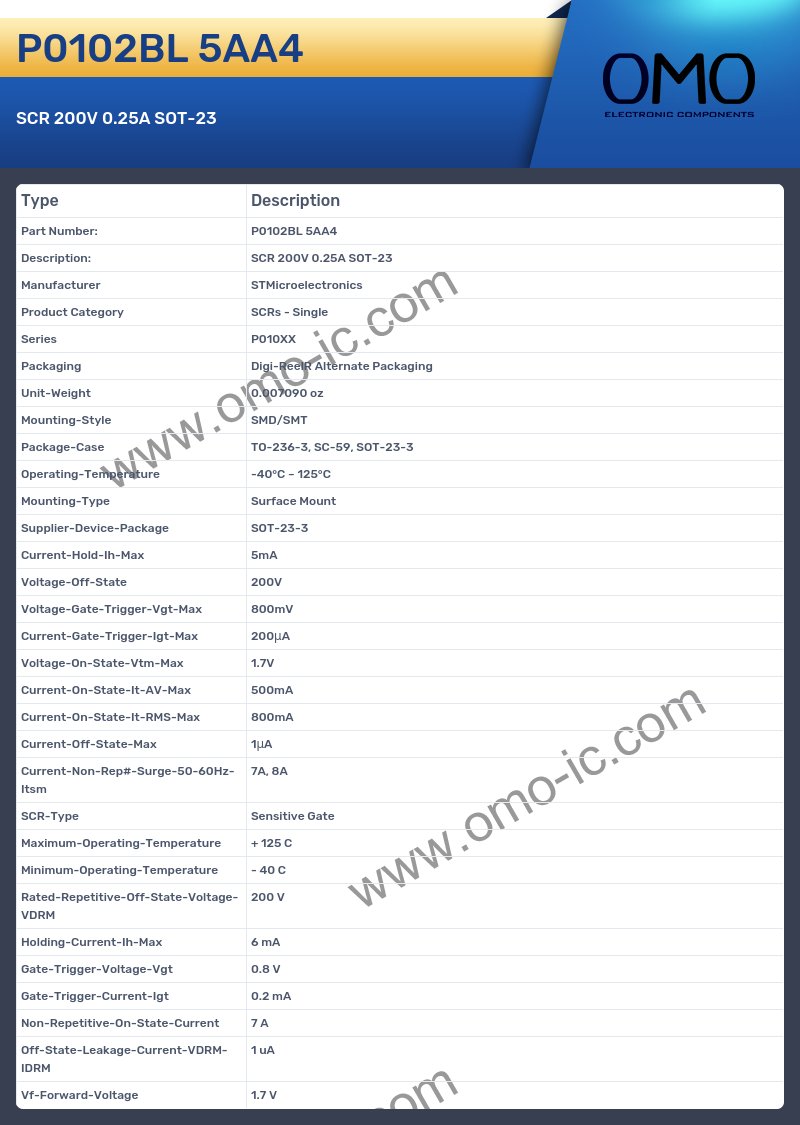

P0102BL 5AA4 Specifications

• Manufacturer STMicroelectronics
• Product Category SCRs - Single
• Series P010XX
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.007090 oz
• Mounting-Style SMD/SMT
• Package-Case TO-236-3, SC-59, SOT-23-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-23-3
• Current-Hold-Ih-Max 5mA
• Voltage-Off-State 200V
• Voltage-Gate-Trigger-Vgt-Max 800mV
• Current-Gate-Trigger-Igt-Max 200μA
• Voltage-On-State-Vtm-Max 1.7V
• Current-On-State-It-AV-Max 500mA
• Current-On-State-It-RMS-Max 800mA
• Current-Off-State-Max 1μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 7A, 8A
• SCR-Type Sensitive Gate
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 200 V
• Holding-Current-Ih-Max 6 mA
• Gate-Trigger-Voltage-Vgt 0.8 V
• Gate-Trigger-Current-Igt 0.2 mA
• Non-Repetitive-On-State-Current 7 A
• Off-State-Leakage-Current-VDRM-IDRM 1 uA
• Vf-Forward-Voltage 1.7 V
