P0118DA 1AA3 Overview

Product belongs to the P011XX series. Bulk is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-226-3, TO-92-3 (TO-226AA) Operational temperature range: -40°C ~ 125°C Through Hole mounting type Supplier device package: TO-92-3 5mA of Current-Hold-Ih-Max The Voltage-Off-State is 400V. Voltage-Gate-Trigger-Vgt-Max 800mV 5μA of Current-Gate-Trigger-Igt-Max Maximum 1.95V On-State Voltage Its 500mA Current-On-State-It-AV-Max 800mA is the maximum Current-On-State-It-RMS. 10μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 7A, 8A for 50-60Hz Itsm. SCR-Type: Sensitive Gate; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 400 V Rated Repetitive Off-State Voltage VDRM; 5 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 0.8 V on this product. Gate-Trigger-Current-Igt: 0.005 mA; 8 A Non-Repetitive On-State Current The 100 uA Off-State Leakage Current in VDRM and IDRM. The Maximum-Gate-Peak-Inverse-Voltage is 8 V. Vf-Forward-Voltage: 1.93 V

P0118DA 1AA3 Image

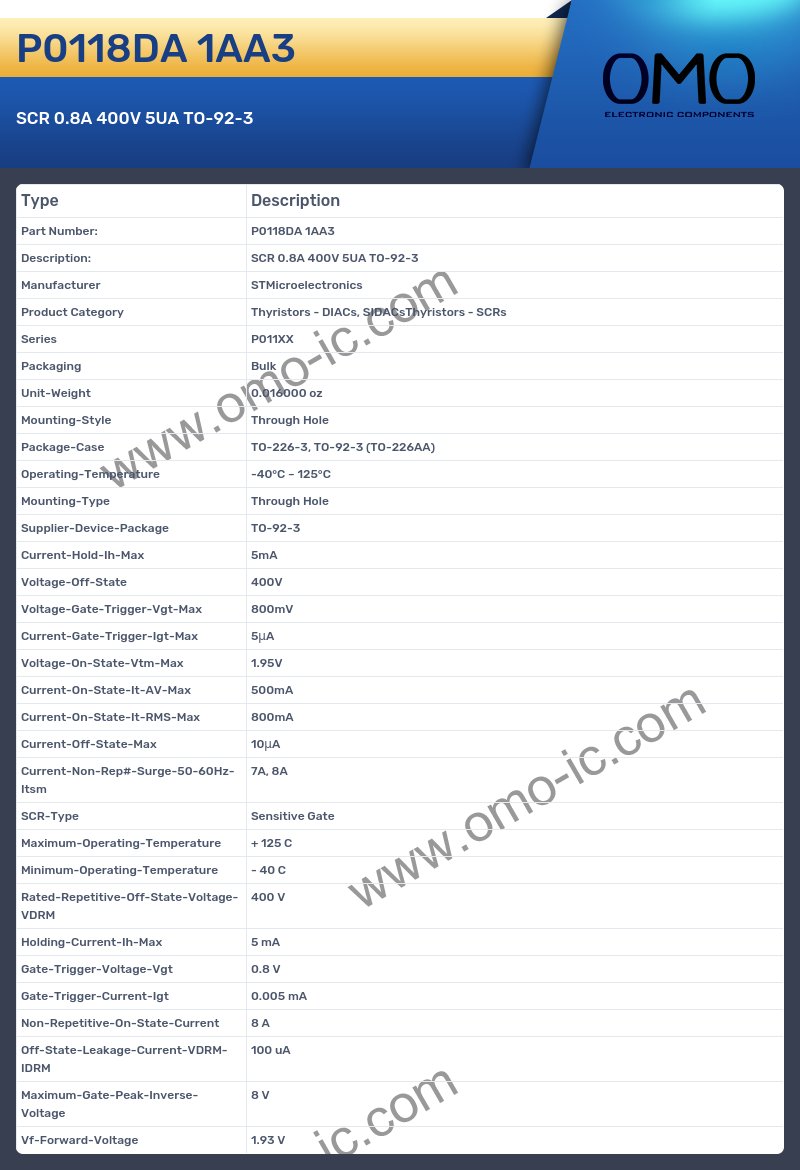

P0118DA 1AA3 Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - DIACs, SIDACsThyristors - SCRs
• Series P011XX
• Packaging Bulk
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-226-3, TO-92-3 (TO-226AA)
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Supplier-Device-Package TO-92-3
• Current-Hold-Ih-Max 5mA
• Voltage-Off-State 400V
• Voltage-Gate-Trigger-Vgt-Max 800mV
• Current-Gate-Trigger-Igt-Max 5μA
• Voltage-On-State-Vtm-Max 1.95V
• Current-On-State-It-AV-Max 500mA
• Current-On-State-It-RMS-Max 800mA
• Current-Off-State-Max 10μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 7A, 8A
• SCR-Type Sensitive Gate
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 400 V
• Holding-Current-Ih-Max 5 mA
• Gate-Trigger-Voltage-Vgt 0.8 V
• Gate-Trigger-Current-Igt 0.005 mA
• Non-Repetitive-On-State-Current 8 A
• Off-State-Leakage-Current-VDRM-IDRM 100 uA
• Maximum-Gate-Peak-Inverse-Voltage 8 V
• Vf-Forward-Voltage 1.93 V
