PIC16F1575-E/P

PIC16F1575-E/P Overview

Product belongs to the PICR 16F series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.079719 oz Through Hole Mounting-Style PDIP-20 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 14-PDIP This product has 18 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH LIN, UART/USART interface Supply Voltage: 2.3 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.5 V to 5.5 V supply voltage for reliable performance. LIN UART USART interface type Processor Core: PIC This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The -. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.5 V Maximum clock frequency of 32 MHz Analog supply voltage: - Number of ADC Channels: 8 Channel This product has 12 I/O connections. This product has a 1 kB data RAM size, providing ample storage for complex applications. The product has a 128 B data-ROM size. This product features an -, providing flexibility for a variety of applications. This product features 2 x 8 bit 5 x 16 bit number of timers and counters. This product includes Watchdog Timer Extended This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage. The EEPROM Data-ROM-Type ensures non-volatile memory storage. This product features a 5 bit of 8 x 12 bit.

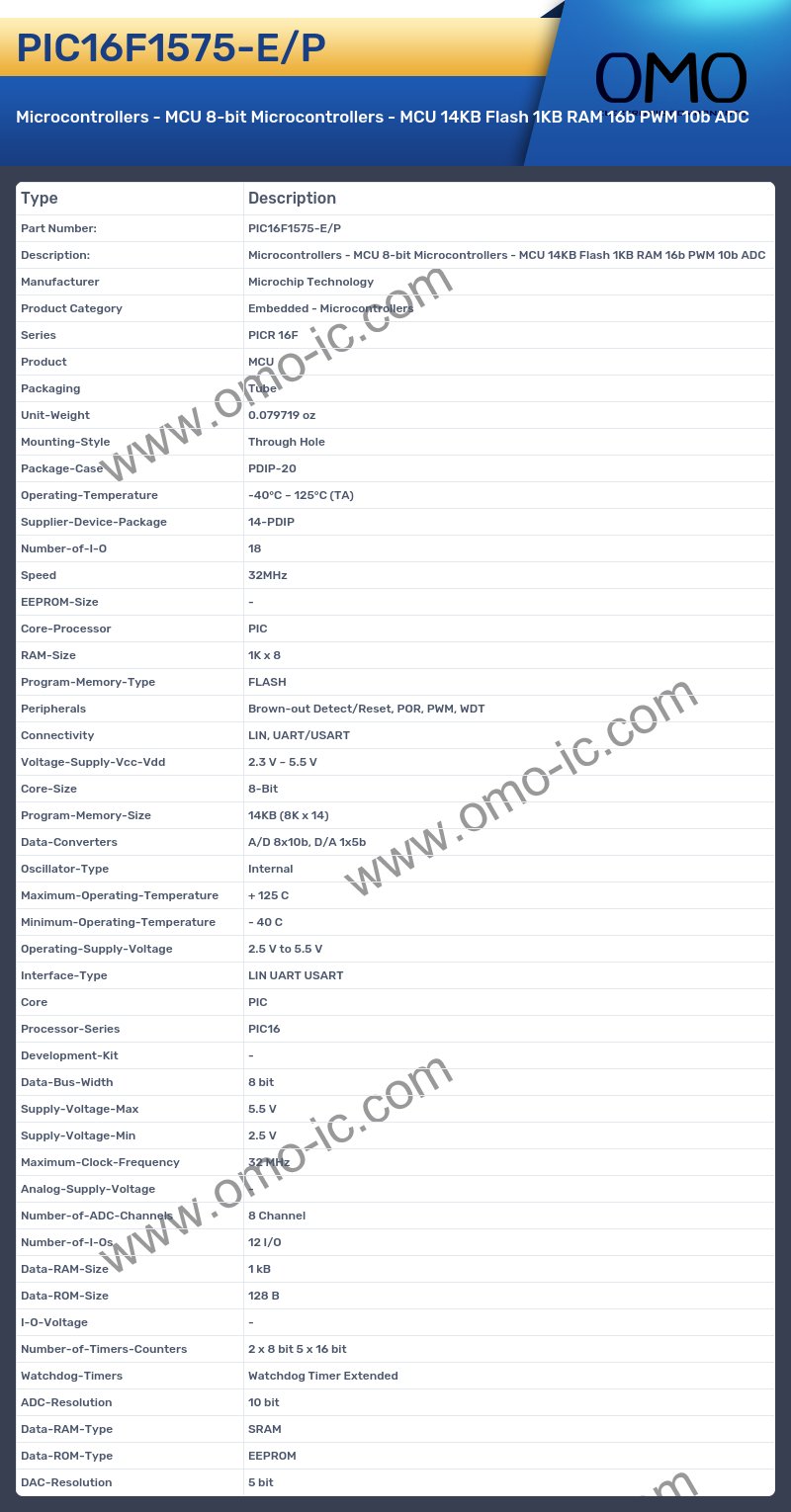

PIC16F1575-E/P Image

PIC16F1575-E/P Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16F
• Product MCU
• Packaging Tube
• Unit-Weight 0.079719 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 14-PDIP
• Number-of-I-O 18
• Speed 32MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity LIN, UART/USART
• Voltage-Supply-Vcc-Vdd 2.3 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 14KB (8K x 14)
• Data-Converters A/D 8x10b, D/A 1x5b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V to 5.5 V
• Interface-Type LIN UART USART
• Core PIC
• Processor-Series PIC16
• Development-Kit -
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.5 V
• Maximum-Clock-Frequency 32 MHz
• Analog-Supply-Voltage -
• Number-of-ADC-Channels 8 Channel
• Number-of-I-Os 12 I/O
• Data-RAM-Size 1 kB
• Data-ROM-Size 128 B
• I-O-Voltage -
• Number-of-Timers-Counters 2 x 8 bit 5 x 16 bit
• Watchdog-Timers Watchdog Timer Extended
• ADC-Resolution 10 bit
• Data-RAM-Type SRAM
• Data-ROM-Type EEPROM
• DAC-Resolution 5 bit
