PIC16F676-E/SL

PIC16F676-E/SL Overview

Product belongs to the PICR 16F series. This product is categorized as MCU Tube Alternate Packaging is the packaging method for this product Weight of 0.011923 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 14-SOIC This product has 12 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: FLASH - interface Supply Voltage: 2 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2 V to 5.5 V supply voltage for reliable performance. RS-232 USB interface type Processor Core: PIC16 This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V Maximum clock frequency of 20 MHz Number of ADC Channels: 8 This product has 12 I/O connections. This product has a 64 B data RAM size, providing ample storage for complex applications. The product has a 128 B data-ROM size. This product features 1 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. The Flash Data-ROM-Type ensures non-volatile memory storage.

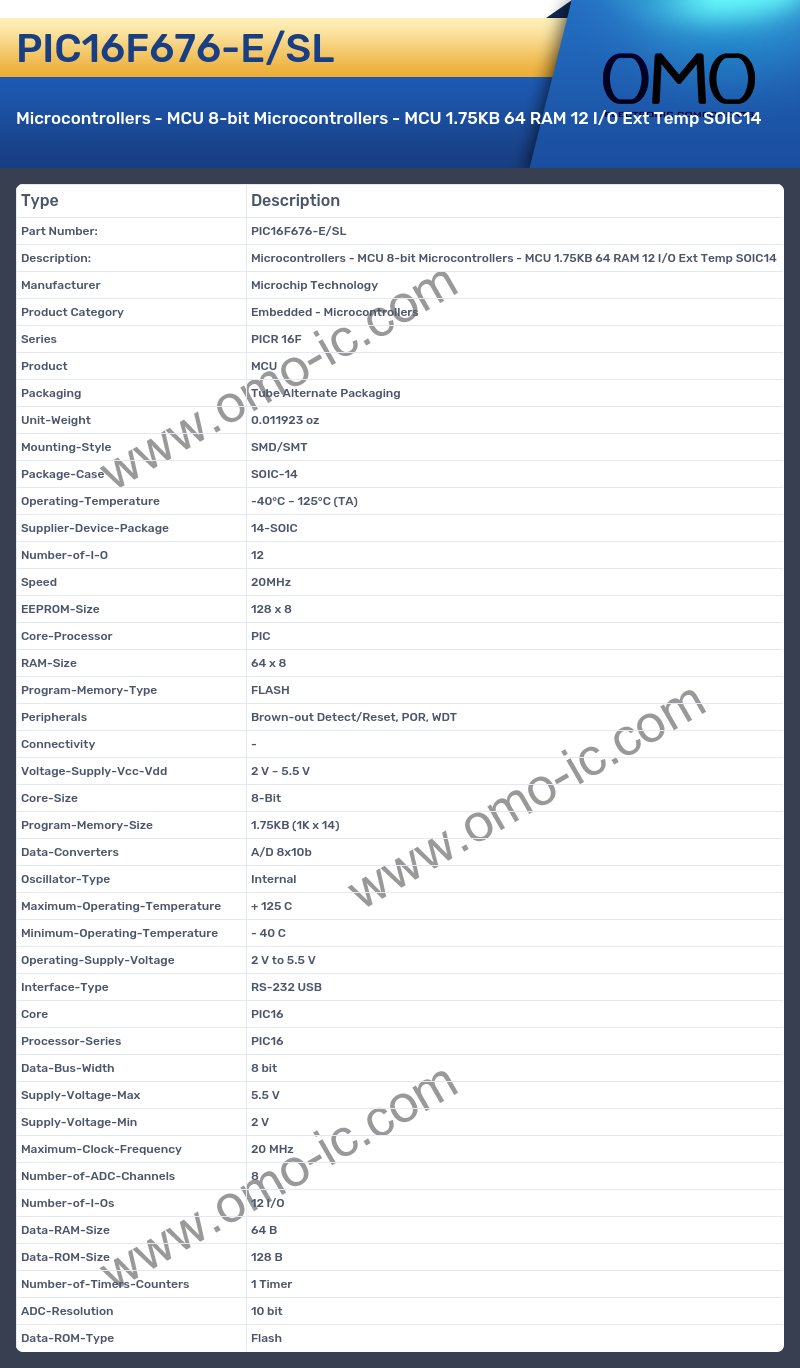

PIC16F676-E/SL Image

PIC16F676-E/SL Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16F
• Product MCU
• Packaging Tube Alternate Packaging
• Unit-Weight 0.011923 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 14-SOIC
• Number-of-I-O 12
• Speed 20MHz
• EEPROM-Size 128 x 8
• Core-Processor PIC
• RAM-Size 64 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, WDT
• Connectivity -
• Voltage-Supply-Vcc-Vdd 2 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 1.75KB (1K x 14)
• Data-Converters A/D 8x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 5.5 V
• Interface-Type RS-232 USB
• Core PIC16
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Maximum-Clock-Frequency 20 MHz
• Number-of-ADC-Channels 8
• Number-of-I-Os 12 I/O
• Data-RAM-Size 64 B
• Data-ROM-Size 128 B
• Number-of-Timers-Counters 1 Timer
• ADC-Resolution 10 bit
• Data-ROM-Type Flash
