PIC16F74-E/L

PIC16F74-E/L Overview

Product belongs to the PICR 16F series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.084185 oz SMD/SMT Mounting-Style PLCC-44 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 44-PLCC (16.59x16.59) This product has 33 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: FLASH I2C, SPI, UART/USART interface Supply Voltage: 4 V ~ 5.5 V 8-Bit architecture External oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2 V to 5.5 V supply voltage for reliable performance. I2C SPI USART interface type Processor Core: PIC16 This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 4 V Maximum clock frequency of 20 MHz Number of ADC Channels: 8 This product has 33 I/O connections. This product has a 192 B data RAM size, providing ample storage for complex applications. The product has a 192 B data-ROM size. This product features 3 Timer number of timers and counters. This product features a high-precision 8 bit, ensuring accurate data conversion. The Flash Data-ROM-Type ensures non-volatile memory storage.

PIC16F74-E/L Image

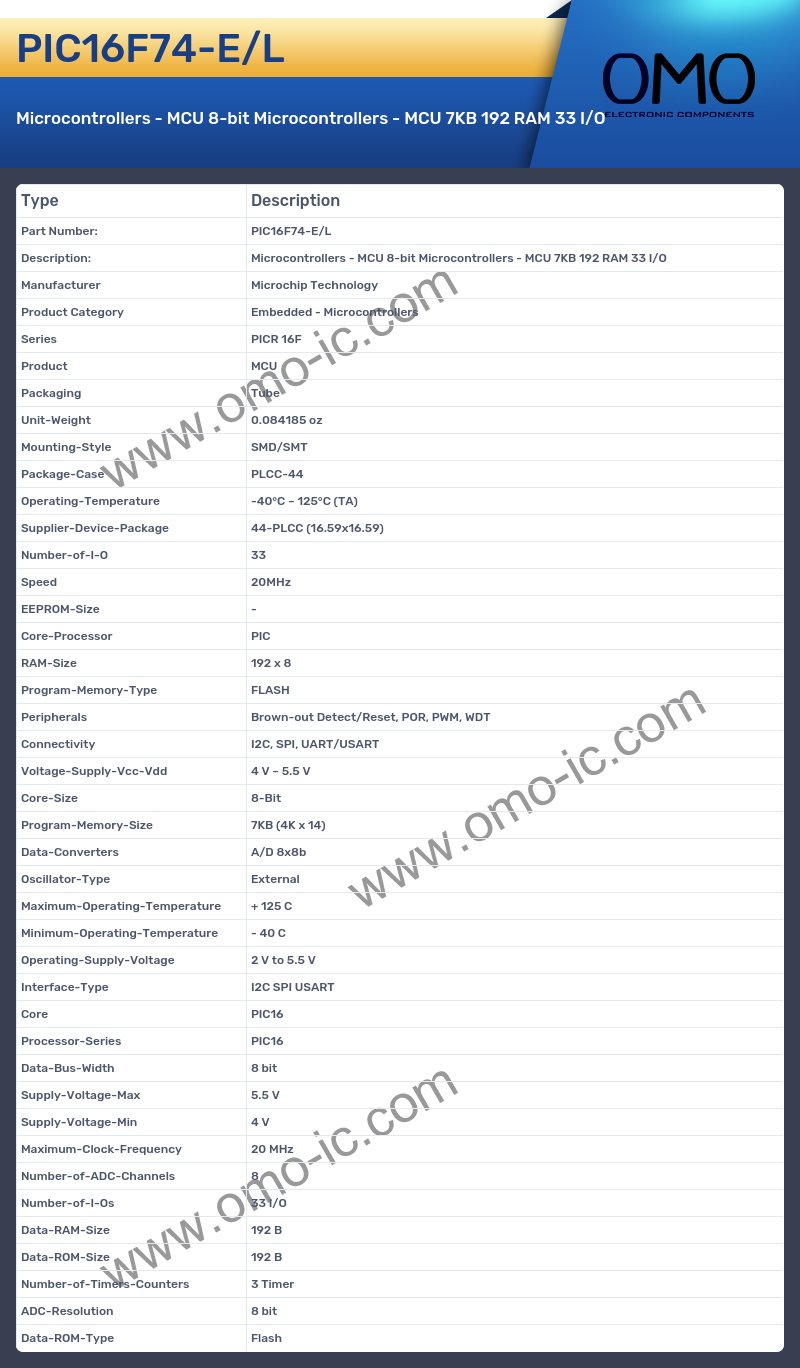

PIC16F74-E/L Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16F
• Product MCU
• Packaging Tube
• Unit-Weight 0.084185 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-44
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 44-PLCC (16.59x16.59)
• Number-of-I-O 33
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 192 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 4 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 7KB (4K x 14)
• Data-Converters A/D 8x8b
• Oscillator-Type External
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 5.5 V
• Interface-Type I2C SPI USART
• Core PIC16
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4 V
• Maximum-Clock-Frequency 20 MHz
• Number-of-ADC-Channels 8
• Number-of-I-Os 33 I/O
• Data-RAM-Size 192 B
• Data-ROM-Size 192 B
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 8 bit
• Data-ROM-Type Flash
