PIC16F871-I/PT

PIC16F871-I/PT Overview

Product belongs to the PICR 16F series. This product is categorized as MCU Tray is the packaging method for this product SMD/SMT Mounting-Style TQFP-44 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 44-TQFP (10x10) This product has 33 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: FLASH UART/USART interface Supply Voltage: 4 V ~ 5.5 V 8-Bit architecture External oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2 V to 5.5 V supply voltage for reliable performance. PSP USART interface type Processor Core: PIC16 This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 4 V Maximum clock frequency of 20 MHz Number of ADC Channels: 8 This product has 33 I/O connections. This product has a 128 B data RAM size, providing ample storage for complex applications. The product has a 64 B data-ROM size. This product features 8 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes RAM, providing fast and efficient data storage. The Flash Data-ROM-Type ensures non-volatile memory storage.

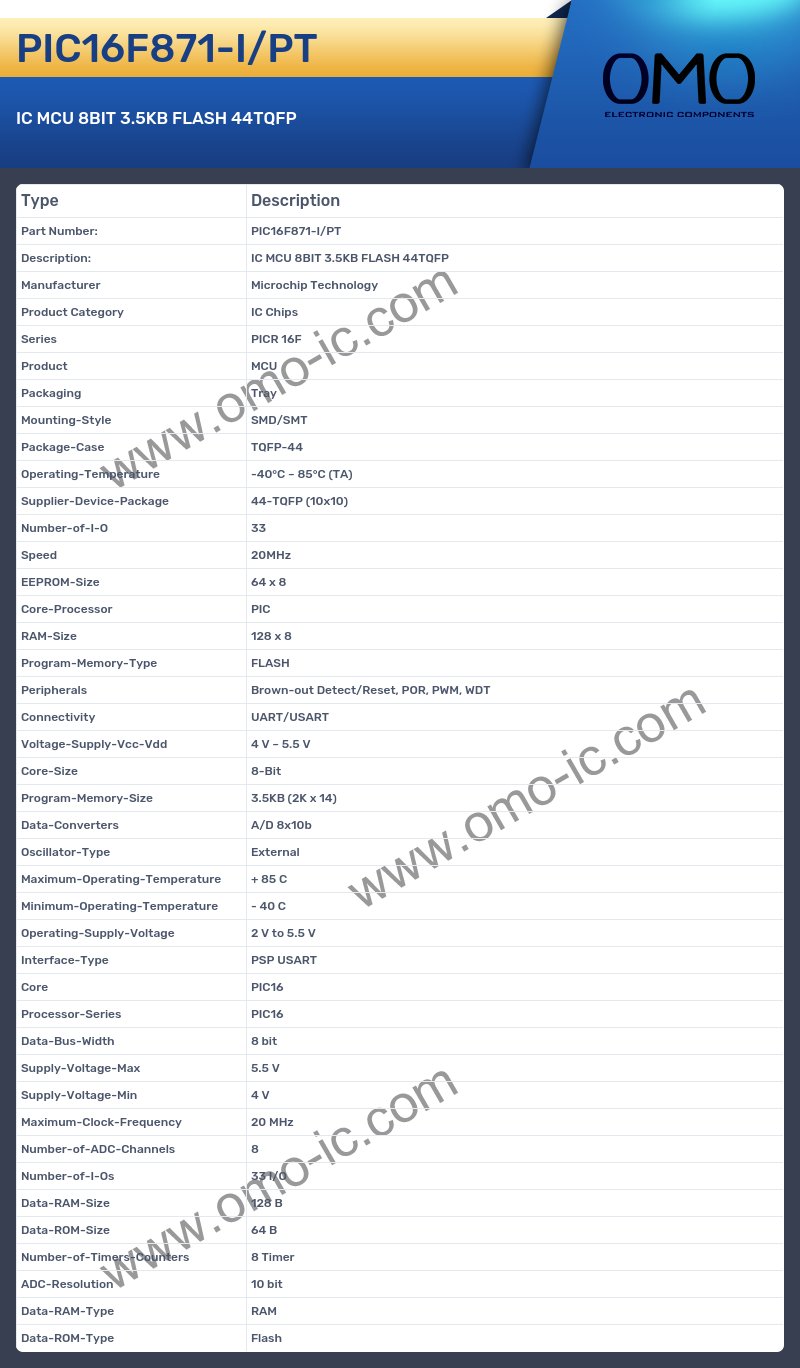

PIC16F871-I/PT Image

PIC16F871-I/PT Specifications

• Manufacturer Microchip Technology
• Product Category IC Chips
• Series PICR 16F
• Product MCU
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case TQFP-44
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 44-TQFP (10x10)
• Number-of-I-O 33
• Speed 20MHz
• EEPROM-Size 64 x 8
• Core-Processor PIC
• RAM-Size 128 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity UART/USART
• Voltage-Supply-Vcc-Vdd 4 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 3.5KB (2K x 14)
• Data-Converters A/D 8x10b
• Oscillator-Type External
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 5.5 V
• Interface-Type PSP USART
• Core PIC16
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4 V
• Maximum-Clock-Frequency 20 MHz
• Number-of-ADC-Channels 8
• Number-of-I-Os 33 I/O
• Data-RAM-Size 128 B
• Data-ROM-Size 64 B
• Number-of-Timers-Counters 8 Timer
• ADC-Resolution 10 bit
• Data-RAM-Type RAM
• Data-ROM-Type Flash
